ADI MAX308EUE+T
Manufacturer No:
MAX308EUE+T
Manufacturer:
Package:
16-TSSOP (0.173, 4.40mm Width)
Description:

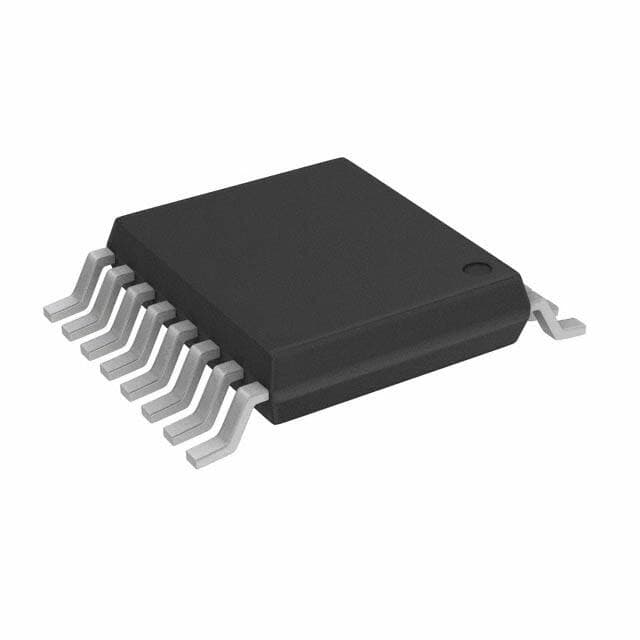

150ns, 150ns 100Ohm Analog Switches BREAK-BEFORE-MAKE MAX308 16 Pins 750pA 15V 16-TSSOP (0.173, 4.40mm Width)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MAX308EUE+T information
ADI MAX308EUE+T technical specifications, attributes, parameters and parts with similar specifications to ADI MAX308EUE+T.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-TSSOP (0.173, 4.40mm Width)
- Number of Pins
- 16
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Published
- 2002
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Resistance
- 100Ohm
- Max Power Dissipation
- 457mW
- Technology
- CMOS
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 15V
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Pin Count
- 16
- Operating Supply Voltage
- 28V
- Number of Channels
- 8
- Number of Circuits
- 1
- Max Supply Voltage
- 30V
- Min Supply Voltage
- 5V
- Operating Supply Current
- 500?A
- Throw Configuration
- DPST
- Propagation Delay
- 175 ns
- Turn On Delay Time
- 600 ns
- Logic Function
- Multiplexer
- Voltage - Supply, Single/Dual (±)
- 5V~30V ±5V~20V
- Supply Type
- Dual, Single
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Turn-Off Delay Time
- 300 ns
- Max Dual Supply Voltage
- 20V
- On-State Resistance (Max)
- 100Ohm
- Min Dual Supply Voltage
- 5V
- High Level Output Current
- 30mA
- Multiplexer/Demultiplexer Circuit
- 8:1
- Off-state Isolation-Nom
- 75 dB
- Current - Leakage (IS(off)) (Max)
- 750pA
- Channel Capacitance (CS(off), CD(off))
- 3pF 26pF
Download datasheets and manufacturer documentation for ADI MAX308EUE+T.
Datasheets:
ConflictMineralStatement:
MAX308EUE+T Overview
The electronic part can be shipped overseas conveniently because it is packaged in 16-TSSOP (0.173, 4.40mm Width). In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. There is an analog multiplexer mounted in position Surface Mount. There is 8:1 ratio between the number of multiplexers and demultiplexers. Around -40°C~85°C TA is the extended operating temperature. In total, there are 16 terminations. This electronic part offers high-quality output due to its 8 channels. In the case of a voltage supply of 15V volts, the electrical part can be powered up and run. There are 16 pins injected into the electronic part body. A total of 1 circuits make up this switch device. Search with MAX308 if you are looking for analog multiplexer variants. It has an internal resistance of 100Ohm. The functions of 16 pins can be found in the datasheets. In normalcircumstances, users should not exceed 30V volts for the multiplexer. Dual, Single supply type digital switch with a low cost. 5V is the lowest voltage that should be fed to the electronic electronic part. In order to operate this switch device, it would need a current of 500?A. There's no problem with dual supply voltage for this switch device. However, it shouldn't exceed 20V. In the case of dual power supplies, you should connect at least 5V. There is a voltage range of 28V operating voltages for the electrical part.
MAX308EUE+T Features
8 Channels
500?A Supply Current
MAX308EUE+T Applications
There are a lot of Maxim Integrated
MAX308EUE+T Analog Switches & Multiplexers ICs applications.
- Isolation
- Medical
- Imaging
- Ultrasound
- Audio and video switching
- Automatic test equipment
- Precision data acquisition
- Battery-powered systems
- Sample-and-hold systems
- Communication systems
User Guide
