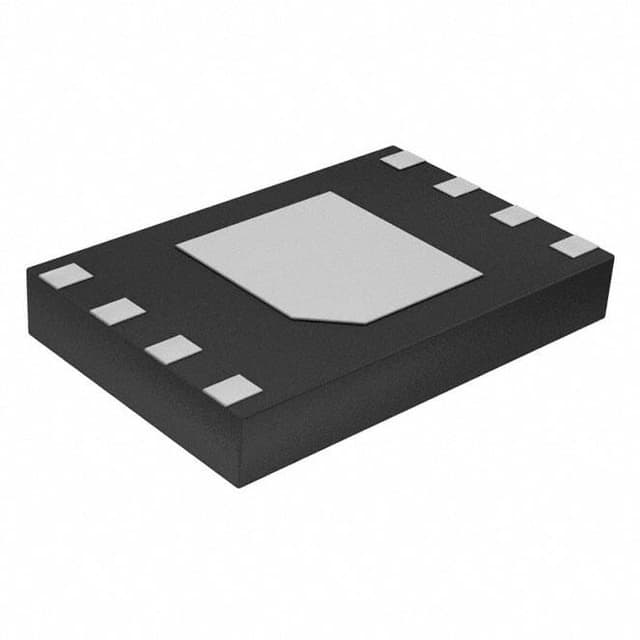

ONSEMI LC709203FQH-01TWG

Manufacturer No:

LC709203FQH-01TWG

Manufacturer:

ONSEMI

Package:

8-WDFN Exposed Pad

Description:

-40°C~85°C TA 1 Channel DUAL Battery Management ICs 3.6V 8 Pins 1 Cell Lithium-Ion 8-WDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LC709203FQH-01TWG information

ONSEMI LC709203FQH-01TWG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LC709203FQH-01TWG.

Type
Parameter

Factory Lead Time
10 Weeks

Lifecycle Status
ACTIVE (Last Updated: 22 hours ago)

Package / Case
8-WDFN Exposed Pad

Mounting Type
Surface Mount

Mount
Surface Mount

Contact Plating
Tin

Number of Pins
8

Published
2012

Packaging
Tape & Reel (TR)

Operating Temperature
-40°C~85°C TA

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Subcategory
Power Management Circuits

Max Power Dissipation
480mW

Technology
CMOS

Terminal Position
DUAL

Supply Voltage
3.6V

Terminal Pitch
0.65mm

Function
Battery Monitor

Operating Supply Voltage
4.5V

Interface
I2C

Max Supply Voltage
4.5V

Min Supply Voltage
2.5V

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Battery Chemistry
Lithium-Ion

Number of Cells
1

Ambient Temperature Range High
85°C

Width
3mm

Length
4mm

Height
800?m

RoHS Status
RoHS Compliant

Radiation Hardening
No

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI LC709203FQH-01TWG.

LC709203FQH-01TWG Overview

It belongs to package 8-WDFN Exposed Pad. This system battery uses an analog integrated circuit (IC) called POWER SUPPLY SUPPORT CIRCUIT. Channels available are 1. Total pins are 8. There is a Tape & Reel (TR) case packaging. The electrical component must be mounted with Surface Mount. A voltage of at least 2.5V volts is required on this electric component. Electronic parts in the Power Management Circuits family are found here. There is a space in between this electrical part and Surface Mount. In order for this power management IC to function correctly, the supplied voltage can't exceed 4.5V volts. There is a possibility of delivering functions Battery Monitor. To best deliver its performance, the electronic part should be operated at a temperature of -40°C~85°C TA. In this electrical part, the battery chemistry includes Lithium-Ion. It is imperative to keep this transceiver ic set to 3.6V at all times. For this smart tools battery, the operating supply voltage is specified as being in the range of 4.5V.

LC709203FQH-01TWG Features

Available in 8-WDFN Exposed Pad Package
with 8 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 3.6V

LC709203FQH-01TWG Applications

There are a lot of ON Semiconductor
LC709203FQH-01TWG Battery Management ICs applications.

Cell phone towers
A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
Weather stations
Distributed energy resources
Solar and wind-generating plants
Electric street sweepers
Shuttle robots
