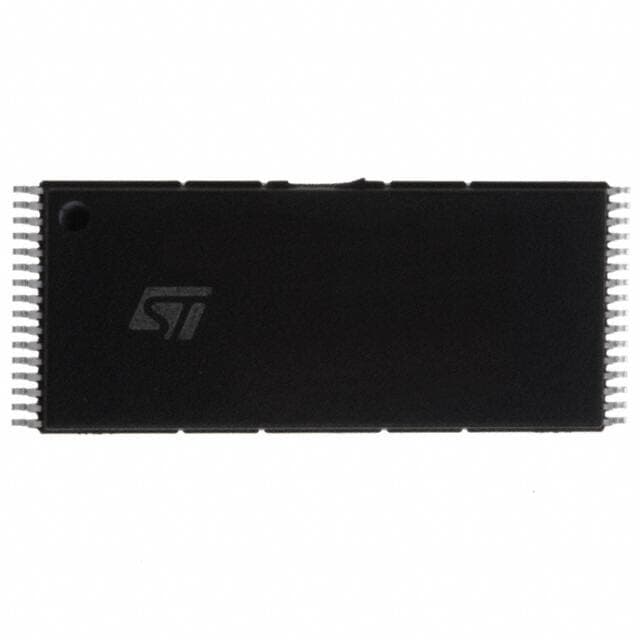

ST M29F010B70N1

Manufacturer No:

M29F010B70N1

Manufacturer:

Package:

32-TFSOP (0.724, 18.40mm Width)

Description:

5V V 32 Pin Memory IC M29F010 18.4mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M29F010B70N1 information

ST M29F010B70N1 technical specifications, attributes, parameters and parts with similar specifications to ST M29F010B70N1.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
32-TFSOP (0.724, 18.40mm Width)

Surface Mount
YES

Operating Temperature
0°C~70°C TA

Packaging
Tray

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
TIN LEAD

HTS Code
8542.32.00.51

Technology
FLASH - NOR

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
M29F010

Pin Count
32

JESD-30 Code
R-PDSO-G32

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

Memory Size
1Mb 128K x 8

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Supply Current-Max
0.02mA

Memory Format
FLASH

Memory Interface
Parallel

Data Bus Width
8b

Organization
128KX8

Memory Width
8

Write Cycle Time - Word, Page
70ns

Standby Current-Max
0.0001A

Memory Density
1048576 bit

Access Time (Max)
70 ns

Programming Voltage
5V

Endurance
100000 Write/Erase Cycles

Data Polling
YES

Toggle Bit
YES

Command User Interface
YES

Number of Sectors/Size
8

Sector Size
16K

Download datasheets and manufacturer documentation for ST M29F010B70N1.

Datasheets:

stmicroelectronics-m29f010b70k6t-datasheets-2684.pdf

M29F010B70N1 Overview

A Non-Volatile-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tray case as well. Embedded in the 32-TFSOP (0.724, 18.40mm Width) case, memory ics is a single file. On the chip, there is an 1Mb 128K x 8 memory, which is the size of the chip's memory. There is a FLASH-format memory used in this device, which is the memory format used by mainstream devices. Featuring an extended operating temperature range of 0°C~70°C TA, this device allows it to be used in a variety of demanding applications. The device is capable of handling a supply voltage of 4.5V~5.5V volts. The recommended mounting type for memory ics is Surface Mount. A total of 32 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 5V will be necessary. Similar parts are frequently selected using the ic memory chip's base part number, M29F010. The memory device in question has 32 pins, thus indicating that it has 32 memory locations that can be accessed. As for power supplies, this memory chip requires just 5V . In order to operate your device, you will need to provide a maximum supply current of 0.02mA. A programming voltage of 5V is required to change a nonvolatile memory array's state. A total of 8 specifically sized divisions are contained in this memory.

M29F010B70N1 Features

Package / Case: 32-TFSOP (0.724, 18.40mm Width)

M29F010B70N1 Applications

There are a lot of STMicroelectronics
M29F010B70N1 Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
