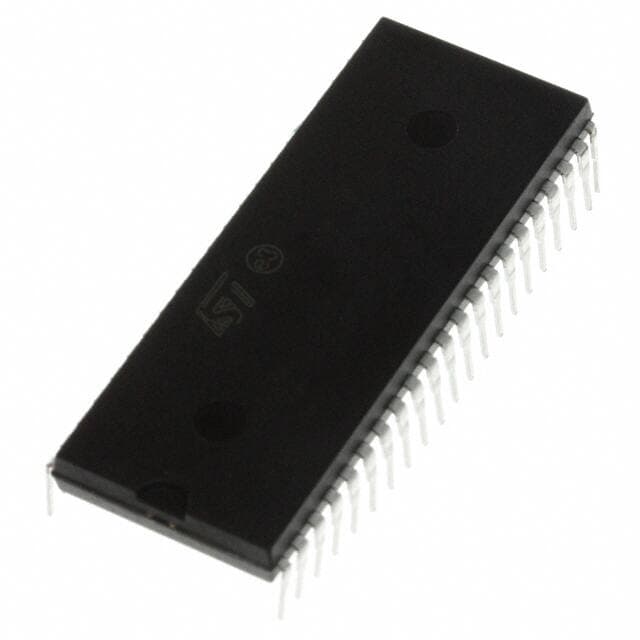

ST M27C322-100S1

Manufacturer No:

M27C322-100S1

Manufacturer:

Package:

42-SDIP (0.600, 15.24mm)

Description:

5V V 42 Pin Memory IC M27C322 36.83mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M27C322-100S1 information

ST M27C322-100S1 technical specifications, attributes, parameters and parts with similar specifications to ST M27C322-100S1.

Type
Parameter

Mounting Type
Through Hole

Package / Case
42-SDIP (0.600, 15.24mm)

Surface Mount
NO

Number of Pins
42

Operating Temperature
0°C~70°C TA

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
42

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Subcategory
OTP ROMs

Technology
EPROM - OTP

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
1.778mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
M27C322

Pin Count
42

Qualification Status
Not Qualified

Power Supplies
5V

Memory Size
32Mb 2M x 16

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Supply Current-Max
0.07mA

Access Time
100ns

Memory Format
EPROM

Memory Interface
Parallel

Organization
2MX16

Output Characteristics
3-STATE

Memory Width
16

Standby Current-Max
0.0001A

Memory Density
33554432 bit

I/O Type
COMMON

Length
36.83mm

Height Seated (Max)
5.08mm

Width
15.24mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST M27C322-100S1.

M27C322-100S1 Overview

Non-Volatile is its memory type. It is available in a case with a Tube shape. As you can see, it is embedded in 42-SDIP (0.600, 15.24mm) case. There is an 32Mb 2M x 16 memory capacity on the chip. In this device, the memory is of the EPROM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 4.5V~5.5V is possible to be applied to the supply. There is a recommendation that Through Hole mounting type should be used for this product. As you can see from the diagram, the chip is planted with 42 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. To select similar parts, many people use the device's base part number M27C322. It is encased in an 42-pin package that contains this ic memory chip. It has 42 pins indicating it has 42 memory locations. It is noted that the operating supply voltage of this memory is 5V. This memory chip requires a mere 5V of power. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. This memory ics is capable of operating with an input current of 0.07mA at max. Generally, this component is considered a type of OTP ROMs.

M27C322-100S1 Features

Package / Case: 42-SDIP (0.600, 15.24mm)
42 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

M27C322-100S1 Applications

There are a lot of STMicroelectronics
M27C322-100S1 Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
