Harwin M22-2040346

Manufacturer No:

M22-2040346

Manufacturer:

Package:

Description:

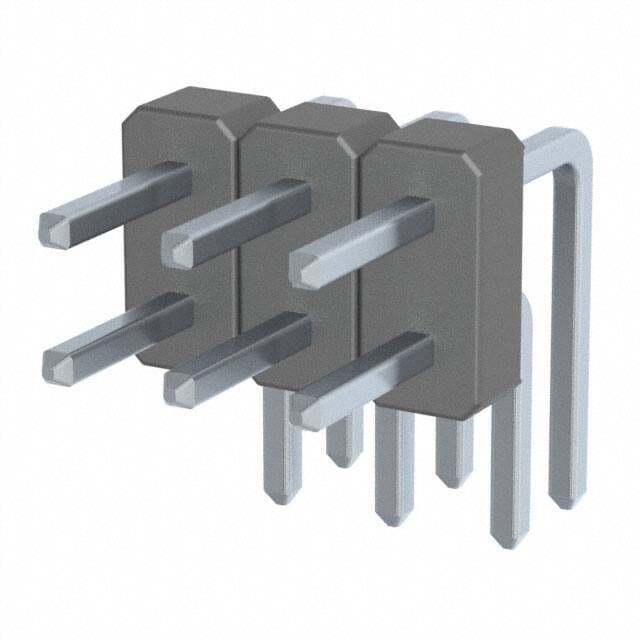

M22 Series 2-Row Header, Cuttable Solder Phosphor Bronze Bulk Through Hole, Right Angle Tin Polyamide (PA6T), Nylon 6T 6-Position Board to Board 0.157 4.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M22-2040346 information

Harwin M22-2040346 technical specifications, attributes, parameters and parts with similar specifications to Harwin M22-2040346.

Type
Parameter

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Housing Material
Nylon

Weight
197.000836mg

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
M22

Published
2013

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header, Cuttable

Number of Positions
6

Number of Rows
2

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Subcategory
Headers and Edge Type Connectors

Contact Finish - Mating
Tin

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
1A per Contact

Orientation
Right Angle

Depth
6.75mm

Insulation Height
0.157 4.00mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.079 2.00mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.079 (2.00mm)

Contact Length - Post
0.118 3.00mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Length - Mating
0.138 3.50mm

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.157 inch

Download datasheets and manufacturer documentation for Harwin M22-2040346.

Datasheets:

harwininc-m221930046-datasheets-0949.pdf

harwininc-m222040305-datasheets-6455.pdf

M22-2040346 Overview

The packaging contains Header, Cuttable.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number M22 belongs to the M22 Series.Further, there are features such as ROHS COMPLIANT, to name only a few.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~105°C.
