Harwin M80-8663422
Harwin M80-8663422

Harwin M80-8663422

Manufacturer No:

M80-8663422

Manufacturer:

Harwin

Package:

Description:

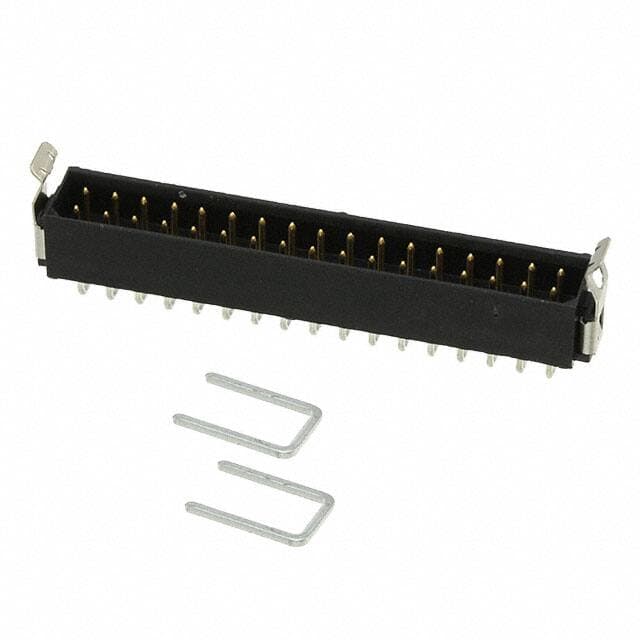

Datamate L-Tek Series 2-Row Header Solder Tube Through Hole, Right Angle 34-Position Board to Board or Cable 0.235 5.97mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M80-8663422 information

Harwin M80-8663422 technical specifications, attributes, parameters and parts with similar specifications to Harwin M80-8663422.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Circular
  • Housing Material
  • Polyester
  • Contact Finish Mating
  • Gold
  • Contact Materials
  • Phosphor Bronze
  • Insulation Materials
  • Polyester, Glass Filled
  • Voltage Rated
  • 120V
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • Datamate L-Tek
  • Published
  • 2011
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 34
  • Number of Rows
  • 2
  • Additional Feature
  • LATCHED
  • Fastening Type
  • Latch Lock
  • MIL Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 2.2A
  • Insulation Height
  • 0.235 5.97mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • not_compliant
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin-Lead
  • PCB Contact Pattern
  • RECTANGULAR
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE

Download datasheets and manufacturer documentation for Harwin M80-8663422.

Datasheets:

M80-8663422 Overview


Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Datamate L-Tek Series.Other features include LATCHED, to name just a few.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.

M80-8663422 Features


Datamate L-Tek series


M80-8663422 Applications


There are a lot of Harwin Inc.
M80-8663422 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology

User Guide
