NKK Switches M2013S2A2G30

Manufacturer No:

M2013S2A2G30

Manufacturer:

Package:

Description:

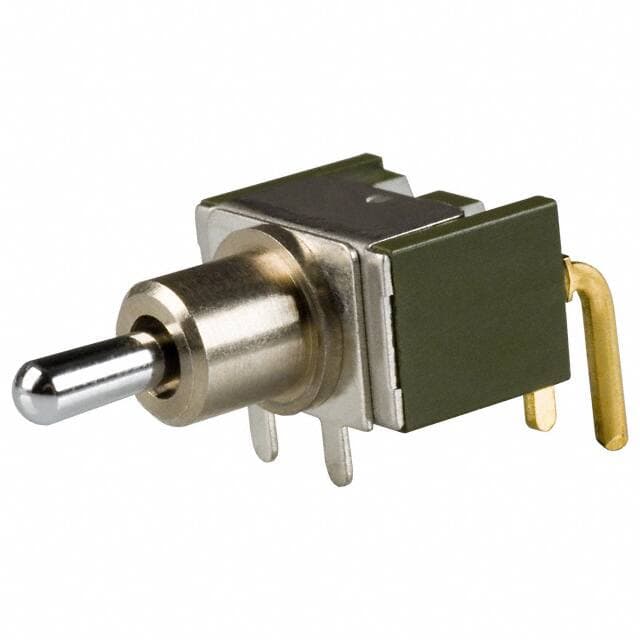

Description: Angle PC Mount Miniature Toggle Switch; Poles: SPDT; Circuits: On-Off-On; Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Standard Round; actuator length: 6.86mm; Illumination: Non-Illuminated; Mounting Type: Through Hole, Right Angle; Termination Style: PC Pin; bushing thread: Unthreaded; Features: Epoxy Sealed Terminals; Rating: 0.4

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M2013S2A2G30 information

NKK Switches M2013S2A2G30 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches M2013S2A2G30.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
NKK SWITCHES CO LTD

Reach Compliance Code
not_compliant

ECCN Code
EAR99

HTS Code
8536.50.90.65

Samacsys Manufacturer
NKK Switches

Actuator Angle
25 deg

Actuator Color
CHROME

Actuator Finish
CHROME

Actuator Length
0.27 inch

Actuator Material
BRASS

Actuator Type
TOGGLE BAT

Body Breadth
7.8994 mm

Body Height
26.8986 mm

Body Length or Diameter
13.0048 mm

Bushing Diameter
0.244 inch

Bushing Length
0.264 inch

Bushing Type
UNTHREADED

Center Contact Material
COPPER ALLOY

Center Contact Plating
GOLD OVER NICKEL

Contact (DC) Max Power Rating R Load
0.4VA@28VDC

Contact Function
ON-OFF-ON

Dielectric Withstand Volts
1500VAC V

Electrical Life
50000 Cycle(s)

End Contact Material
COPPER ALLOY

End Contact Plating
GOLD OVER NICKEL

Housing Material
STAINLESS STEEL

Insulation Resistance
1000000000 Ω

Insulator Material
DIALLYL PHTHALATE

JESD-609 Code
e4

Mounting Feature
THROUGH HOLE-RIGHT ANGLE

Operating Temperature-Max
85 °C

Operating Temperature-Min
-15 °C

PCB Hole Count
5

Sealing
EPOXY

Solderability
WAVE

Surface Mount
NO

Switch Action
VERTICAL

Switch Function
SPDT

Switch Type
TOGGLE SWITCH

Terminal Finish
GOLD OVER NICKEL/SILVER

Terminal Length
0.169 inch

Terminal Material
COPPER ALLOY

Termination Type
SOLDER
