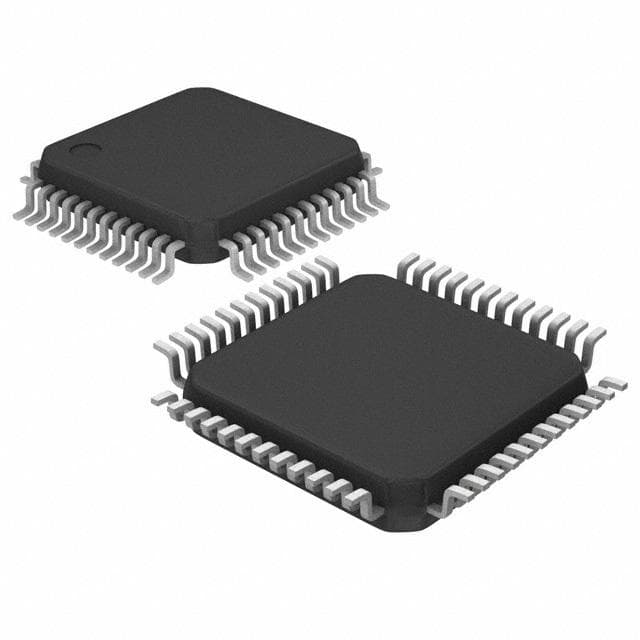

Renesas 8344BYILFT

Manufacturer No:

8344BYILFT

Manufacturer:

Renesas

Package:

LQFP

Description:

1 Circuit 100MHz 2.5V Clock Buffer QUAD 48 Pins LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8344BYILFT information

Renesas 8344BYILFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 8344BYILFT.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
48

Packaging
Tape & Reel

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES AT 3.3V SUPPLY

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Number of Outputs
24

Power Supplies
2.5/3.3V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Max Supply Voltage
3.465V

Min Supply Voltage
2.375V

Propagation Delay
4.5 ns

Quiescent Current
95mA

Frequency (Max)
100MHz

Family
8344

Input
LVDS

Logic IC Type
LOW SKEW CLOCK DRIVER

Max I(ol)
0.036 A

Duty Cycle (Max)
60 %

Same Edge Skew-Max (tskwd)
0.275 ns

Length
7mm

Width
7mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 8344BYILFT.

Datasheets:

integrateddevicetechnology-8344byilft-datasheets-4998.pdf

integrateddevicetechnology-8344byilft-datasheets-9926.pdf

8344BYILFT Overview

LQFP case is available for the cut smart buffer. In case Tape & Reel, the cut smart buffer is available. Normal operation has a maximum value of 100MHz. A total of 48 terminations have been found in it. The supply voltage of 2.5V is capable of providing high efficiency. There is a place for it in the way of Surface Mount. On this board, there is a pin count of 48. In order for the timeing clock to operate, it is connected to the 48 pins. There is a circuit clock contained within Clock Drivers that is responsible for this function. It is designed to operate at a minimum temperature of -40°C in order to maintain reliability. In order to ensure stable operation, the maximum operating temperature must be set to 85°C. The electronic gadget belongs to the 8344 family. An IC with a value of LOW SKEW CLOCK DRIVER is used in order to achieve this. By default, the output of the circuit clock is set to 24. There is a 2.5/3.3V volt supply that powers the timeing clock. It is capable of handling a maximum supply voltage of 3.465V volts. As low as possible is the source voltage 2.375V, which can be used by the system to work. With the help of this gadget, it is also possible to obtain ALSO OPERATES AT 3.3V SUPPLY. The clock divider consumes 95mA quiescent current and is unaffected by external factors.

8344BYILFT Features

48 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

8344BYILFT Applications

There are a lot of Integrated Device Technology (IDT)
8344BYILFT Clock Buffers & Drivers applications.

Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
Computing
