Harwin M20-9950545
Harwin M20-9950545

Harwin M20-9950545

Manufacturer No:

M20-9950545

Manufacturer:

Harwin

Package:

Description:

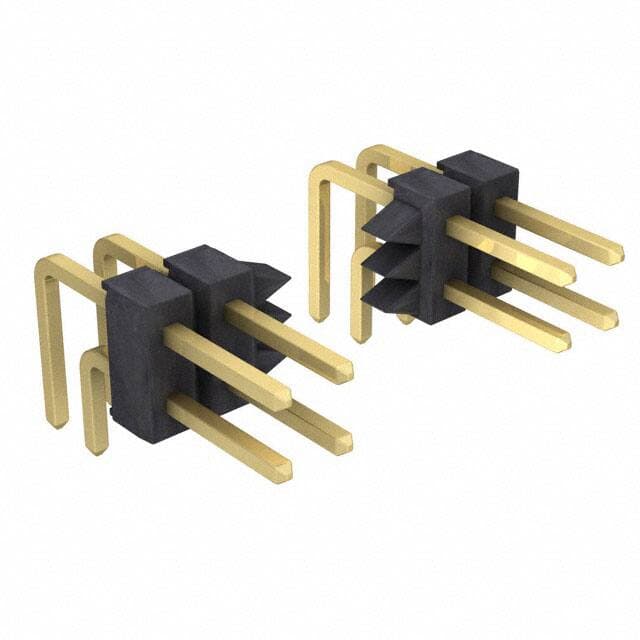

M20 Series 2-Row Header, Cuttable Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA6T), Nylon 6T 10-Position Board to Board or Cable 0.200 5.08mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-9950545 information

Harwin M20-9950545 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-9950545.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Housing Material
  • Nylon
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • M20
  • Published
  • 2006
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header, Cuttable
  • Number of Positions
  • 10
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 750V
  • Additional Feature
  • BAG PACKAGING
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 3A per Contact
  • Orientation
  • Right Angle
  • Depth
  • 5.08mm
  • Insulation Height
  • 0.200 5.08mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.100 2.54mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 2

Download datasheets and manufacturer documentation for Harwin M20-9950545.

Datasheets:

M20-9950545 Overview


Currently, it is packaged in Header, Cuttable.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the M20 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as BAG PACKAGING, to name a few.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
