Harwin M20-6103205

Manufacturer No:

M20-6103205

Manufacturer:

Package:

Description:

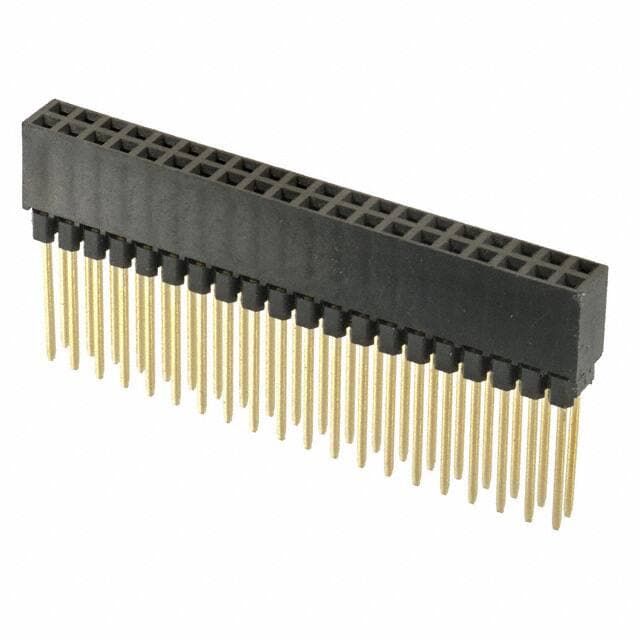

M20 Series Stackthrough, Unkeyed (PC/104) Solder Gold Black 3.00?in 0.076?m 64 Positions Pitch: 0.100 2.54mm -55°C~105°C Tube Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-6103205 information

Harwin M20-6103205 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-6103205.

Type
Parameter

Contact Material
Bronze

Mount
Through Hole

Mounting Type
Through Hole

Insulation Material
Nylon

Housing Material
PBT

Operating Temperature
-55°C~105°C

Packaging
Tube

Series
M20

Published
2006

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Stackthrough, Unkeyed (PC/104)

Number of Positions
64

Color
Black

Number of Rows
2

Gender
Receptacle

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.40

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.100 2.54mm

Orientation
Straight

Depth
4.95mm

Number of Positions Loaded
All

Reach Compliance Code
not_compliant

Current Rating
3A

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2

Number of Contacts
32

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.197 inch

UL Flammability Code
94V-0

Rated Current (Signal)
3A

Contact Style
SQ PIN-SKT

Contact Resistance
10mOhm

Insulation Resistance
5GOhm

Body/Shell Style
PLUG

Download datasheets and manufacturer documentation for Harwin M20-6103205.

Datasheets:

harwininc-m206102005-datasheets-7468.pdf

M20-6103205 Overview

The product comes in a package of Stackthrough, Unkeyed (PC/104).Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the M20 Series.Among other features are ROHS COMPLIANT, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -55°C~105°C.

M20-6103205 Features

M20 series

M20-6103205 Applications

There are a lot of Harwin Inc.
M20-6103205 Backplane Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
