Harwin M20-7890542
Harwin M20-7890542

Harwin M20-7890542

Manufacturer No:

M20-7890542

Manufacturer:

Harwin

Package:

SIL

Description:

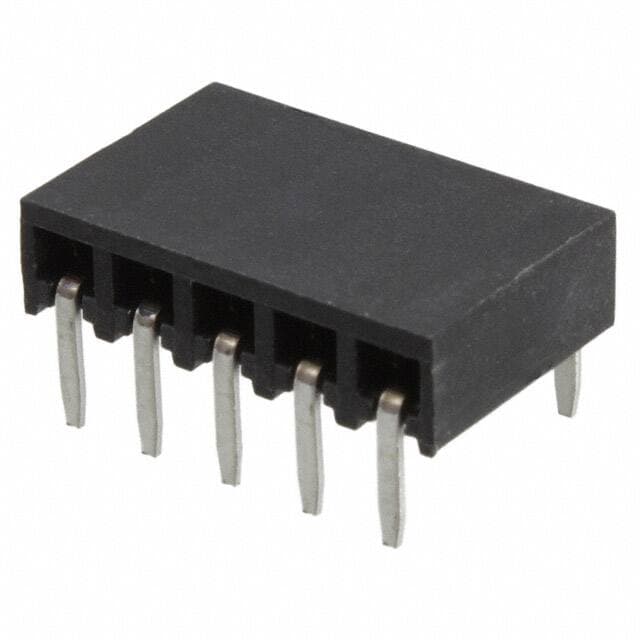

1 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold Polyamide (PA6T), Nylon 6T 5 Positions Female Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-7890542 information

Harwin M20-7890542 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-7890542.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Gold, Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Package / Case
  • SIL
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Housing Material
  • Nylon
  • Weight
  • 514.005204mg
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tube
  • Series
  • M20
  • Published
  • 2012
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 5
  • Applications
  • General Purpose, Industrial, Telecommunications
  • Number of Rows
  • 1
  • Additional Feature
  • ROHS COMPLIANT
  • Fastening Type
  • Push-Pull
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Female Socket
  • Mixed Contacts
  • NO
  • Orientation
  • Right Angle
  • Depth
  • 8.1mm
  • Insulation Height
  • 0.130 3.30mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.118 3.00mm
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin

Download datasheets and manufacturer documentation for Harwin M20-7890542.

Datasheets:

M20-7890542 Overview


The product comes in a package of Receptacle.Through Hole, Right Angle is the mount type.Tube cases are used to package the product.This product is in the M20 Series.Also, there's ROHS COMPLIANT, to name a few.Packaging with the SIL contains a device.There's an application for the device called General Purpose, Industrial, Telecommunications.There's a Through Hole on the part.Operating temperature is -40°C~105°C.

M20-7890542 Features


M20 series


M20-7890542 Applications


There are a lot of Harwin Inc.
M20-7890542 Rectangular Connectors applications.
