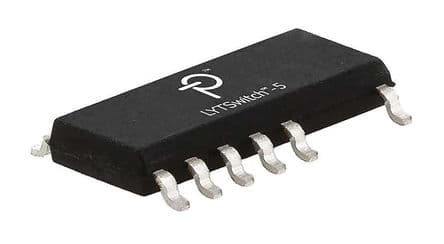

Power Integrations LYT5228D

Manufacturer No:

LYT5228D

Manufacturer:

Power Integrations

Package:

16-SOIC (0.154, 3.90mm Width), 14 Leads

Description:

16 Pin AC to DC power converter LYTSwitch?-5 Series 132.7kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LYT5228D information

Power Integrations LYT5228D technical specifications, attributes, parameters and parts with similar specifications to Power Integrations LYT5228D.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.154, 3.90mm Width), 14 Leads

Number of Pins
16

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
LYTSwitch?-5

Published
2015

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Power (Watts)
25W

Frequency
124kHz

Max Output Current
500mA

Number of Channels
1

Topology
Flyback, Step-Down (Buck), Step-Up (Boost)

Min Input Voltage
90V

Frequency - Switching
132.7kHz

Max Input Voltage
308V

Interface IC Type
LED DISPLAY DRIVER

Internal Switch(s)
Yes

Output Isolation
Isolated

Min Input Voltage (AC)
90V

Max Input Voltage (AC)
308V

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations LYT5228D.

LYT5228D Overview

There is a ac to dc converter embedded in package 16-SOIC (0.154, 3.90mm Width), 14 Leads .The ac dc converter is available in Tube case.In this case, the AC/DC converter is mounted in the way of Surface Mount .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.When the switching frequency reaches 132.7kHz , the process is complete.It contains 16 pins.Surface Mount is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of LYTSwitch?-5 .This power AC DC is capable of reaching high efficiencies when operating at a frequency of 124kHz .You may read the REACH SVHC standard at No SVHC .Input voltage for the AC to DC converter is available under 308V .The AC to DC inverter may be operated with an input voltage less than 90V volts.An input voltage (AC) should be applied under 308V to the AC to DC power converter.In total, there are 1 channels.In this AC to DC power supply, the interface IC is classified as LED DISPLAY DRIVER .

LYT5228D Features

Packaged with 16-SOIC (0.154, 3.90mm Width), 14 Leads
Switching Frequency at 132.7kHz
With 16 pins
With 1 channels on it
Interface IC Type : LED DISPLAY DRIVER

LYT5228D Applications

There are a lot of Power Integrations
LYT5228D AC DC Converters applications.

DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
