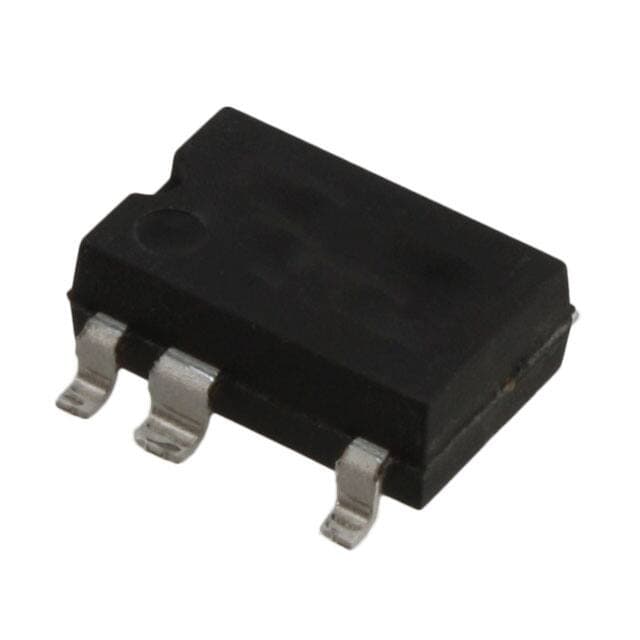

Power Integrations TNY268GN

Manufacturer No:

TNY268GN

Manufacturer:

Power Integrations

Package:

8-SMD (7 Leads), Gull Wing

Description:

7 Terminations 8 Pin AC to DC power converter TinySwitch®-II Series 1 Outputs Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TNY268GN information

Power Integrations TNY268GN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TNY268GN.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
8-SMD (7 Leads), Gull Wing

Surface Mount
YES

Number of Pins
8

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TinySwitch®-II

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
7

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Power Rating
23W

Max Power Dissipation
23W

Terminal Position
DUAL

Number of Functions
1

Terminal Pitch
2.54mm

Frequency
132kHz

Pin Count
8/7

JESD-30 Code
R-PDSO-G7

Number of Outputs
1

Output Voltage
700V

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
380?A

Output Current
880mA

Output Power
15W

Control Features
EN

Topology
Flyback

Min Input Voltage
85V

Max Input Voltage
265V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Open Loop, Over Temperature, Short Circuit

Max Duty Cycle
68 %

Max Supply Voltage (AC)
265V

Drain to Source Resistance
5.2Ohm

Duty Cycle
65%

Output Isolation
Isolated

Min Input Voltage (AC)
85V

Max Input Voltage (AC)
265V

Min Supply Voltage (AC)
85V

Length
9.575mm

Width
6.35mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for Power Integrations TNY268GN.

TNY268GN Overview

In the 8-SMD (7 Leads), Gull Wing package, the ac to dc converter is embedded.In Tube AC/DC power converter, it is available.The AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.An analog IC of type SWITCHING REGULATOR is employed in this AC DC converter.There are a total of 7 terminations.The ac/dc converter has 8 pins.There are a total of 8/7 pins on the ac-dc converter.A member of the TinySwitch®-II manufacturer family, it has the following characteristics.There are 1 outputs to be run.AC to DC converter is set to 880mA for the output current.The output voltage of the AC/DC converter is 700V .A high efficiency can be achieved by operating at a frequency of 132kHz .REACH SVHC standard can be found at No SVHC .The AC to DC converter input voltage can be powered under 265V .In the AC to DC transformer of a coverter, the output power is 15W .If the input voltage is less than 85V V, the AC to DC inverter can be used.A voltage of 85V is the minimum supply voltage across the converter.There is a maximum supply voltage of 265V across the converter.There should be a voltage (AC) that can be applied to the AC to DC power converter under 265V .It uses Adjustable as an output.

TNY268GN Features

Packaged with 8-SMD (7 Leads), Gull Wing
With 8 pins
Output Current at 880mA
Output Type : Adjustable

TNY268GN Applications

There are a lot of Power Integrations
TNY268GN AC DC Converters applications.

AC/DC Adaptors/Chargers for Cordless Phone
AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
