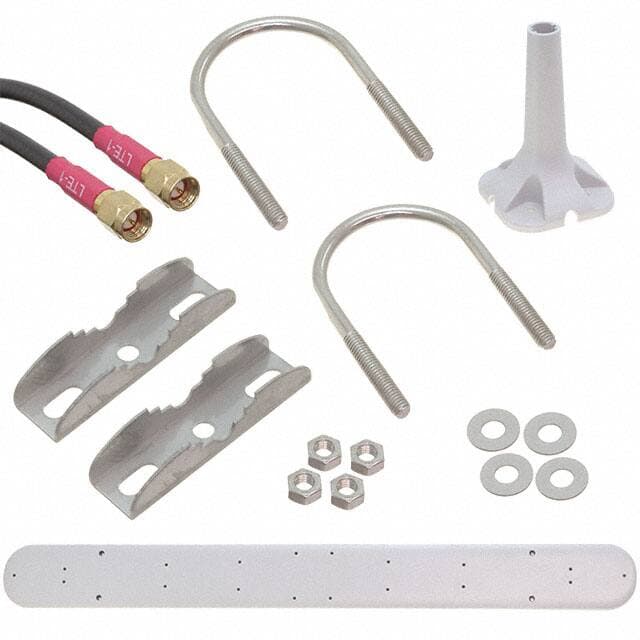

Taoglas Limited LWB01.A.505111

Manufacturer No:

LWB01.A.505111

Manufacturer:

Package:

Description:

7 Bands Whip, Straight Wide B Bracket Mount SMA Male 752MHz 859MHz 920MHz 1.795GHz 1.92GHz 2.045GHz 2.495GHz 1.89dBi, 2.64dBi, 2.4dBi, 2.02dBi, 1.71dBi, 1.29dBi, 1.33dBi 6.181 157.00mm DCS, GSM, LTE, PCS, UMTS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LWB01.A.505111 information

Taoglas Limited LWB01.A.505111 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited LWB01.A.505111.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Bracket Mount

Feature
Cable - 5m

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
DCS, GSM, LTE, PCS, UMTS

Ingress Protection
IP67

Gain
1.89dBi, 2.64dBi, 2.4dBi, 2.02dBi, 1.71dBi, 1.29dBi, 1.33dBi

Frequency Range
698MHz~960MHz 1.71GHz~2.69GHz

RF Family/Standard
Cellular, General ISM

Antenna Type
Whip, Straight

Number of Bands
7

Frequency Group
Wide B

Frequency (Center/Band)
752MHz 859MHz 920MHz 1.795GHz 1.92GHz 2.045GHz 2.495GHz

Height (Max)
6.181 157.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited LWB01.A.505111.

Datasheets:

taoglaslimited-lwb01a505111-datasheets-9409.pdf

Environmental Information:

taoglaslimited-fxr06520075xadg-environmentalinformation-5077.pdf

LWB01.A.505111 Overview

A generalization of RF Antennas can be made using Bracket Mount.

LWB01.A.505111 Features

With Bracket Mount

LWB01.A.505111 Applications

There are a lot of Taoglas Limited
LWB01.A.505111 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo

User Guide
