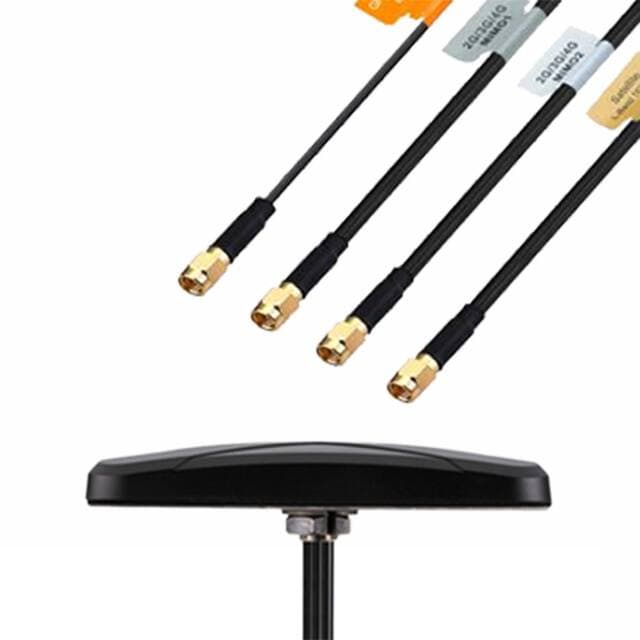

Taoglas Limited MA410.A.LBIJ.001

Manufacturer No:

MA410.A.LBIJ.001

Manufacturer:

Package:

Description:

11 Bands Flat Bar Wide B Panel Mount SMA Male (4) 700MHz 850MHz 900MHz 1.561GHz 1.575GHz 1.602GHz 1.8GHz 1.9GHz 2.1GHz 2.5GHz 3.5GHz 3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi Box 1.219 30.95mm Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA410.A.LBIJ.001 information

Taoglas Limited MA410.A.LBIJ.001 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA410.A.LBIJ.001.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Box

Series
Storm

Feature
Cable - 1m, LNA, Filter

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
SMA Male (4)

Applications
Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS

Ingress Protection
IP67

Frequency
3.6GHz

Gain
3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi

Frequency Range
698MHz~960MHz 1.559GHz ~1.607GHz 1.71GHz~2.17GHz 2.49GHz~2.69GHz 3.3GHz~3.6GHz

RF Family/Standard
Cellular, Navigation

Antenna Type
Flat Bar

VSWR
2, 3.5

Number of Bands
11

Frequency Group
Wide B

Frequency (Center/Band)
700MHz 850MHz 900MHz 1.561GHz 1.575GHz 1.602GHz 1.8GHz 1.9GHz 2.1GHz 2.5GHz 3.5GHz

Return Loss
-10dB

Height
30.988mm

Height (Max)
1.219 30.95mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited MA410.A.LBIJ.001.

MA410.A.LBIJ.001 Overview

As it has a Panel Mount value, it can be used for general RF Antennas.This is a Antenna RF from the Storm series.There is a Box solid enclosure around the RF modulator.Because of its Panel, it is suitable for most RF ic.

MA410.A.LBIJ.001 Features

With Panel Mount
Storm series

MA410.A.LBIJ.001 Applications

There are a lot of Taoglas Limited
MA410.A.LBIJ.001 RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS

User Guide
