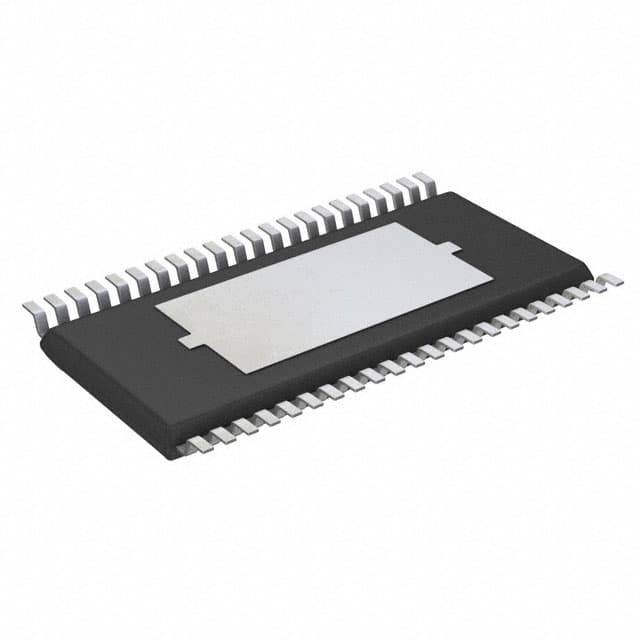

ONSEMI LV8111V-TLM-H

Manufacturer No:

LV8111V-TLM-H

Manufacturer:

ONSEMI

Package:

44-LSSOP (0.220, 5.60mm Width) Exposed Pad

Description:

5.6mm mm Motor Drivers 44 24V V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LV8111V-TLM-H information

ONSEMI LV8111V-TLM-H technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LV8111V-TLM-H.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
44-LSSOP (0.220, 5.60mm Width) Exposed Pad

Operating Temperature
-25°C~80°C TA

Packaging
Tape & Reel (TR)

Published
2013

JESD-609 Code
e6

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
Polygonal Mirror

Subcategory
Motion Control Electronics

Technology
Bi-CMOS

Voltage - Supply
10V~35V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
24V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LV8111

JESD-30 Code
R-PDSO-G44

Function
Driver - Fully Integrated, Control and Power Stage

Qualification Status
Not Qualified

Operating Supply Voltage
35V

Power Supplies
24V

Interface
Parallel

Analog IC - Other Type
BRUSHLESS DC MOTOR CONTROLLER

Output Configuration
Half Bridge (3)

Power Dissipation
1.7W

Current - Output
2.5A

Halogen Free
Halogen Free

Supply Current-Max (Isup)
6.5mA

Voltage - Load
10V~35V

Motor Type - AC, DC
Brushless DC (BLDC)

Width
5.6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI LV8111V-TLM-H.

Datasheets:

onsemiconductor-lv8111vtlmh-datasheets-3860.pdf

LV8111V-TLM-H Overview

The package is designed with [0].The part is packaged in a 44-LSSOP (0.220, 5.60mm Width) Exposed Pad case.In general, it is recommended that the part be mounted by Surface Mount.The component connected in Polygonal Mirroris compatible with it.10V~35V volts can be supplied by the device.Drivers controllers operates wDrivers controllershin a range of -25°C~80°C TAdegrees Celsius.There is a motor type Brushless DC (BLDC)available.This part has 44termination options.A voltage of 10V~35Vcan be applied to the load.This amplifier should be operated at 24V.Ideally, it should be mounted in the Surface Mountposition.Maintain a current of 2.5Afor the part output.A BRUSHLESS DC MOTOR CONTROLLERanalog integrated circuit is used in the device.Based on the LV8111part number, it is found.The item belongs to the Motion Control Electronics series.Drivers controllers is possible to access 1outputs.A supply voltage of 35Vis required to operate this driver.
