ADI LT1764AET#30PBF
ADI LT1764AET#30PBF

ADI LT1764AET#30PBF

Manufacturer No:

LT1764AET#30PBF

Manufacturer:

ADI

Package:

TO-220-5 Formed Leads

Description:

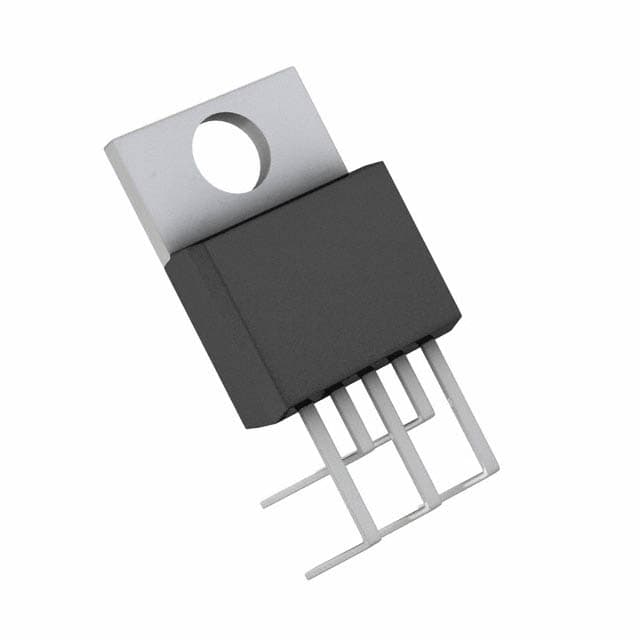

Enable Adjustable LT1764 PMIC 5 TO-220-5 Formed Leads

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT1764AET#30PBF information

ADI LT1764AET#30PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT1764AET#30PBF.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 1 week ago)
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-220-5 Formed Leads
  • Surface Mount
  • NO
  • Number of Pins
  • 5
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tube
  • Published
  • 2005
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Terminal Finish
  • Matte Tin (Sn) - with Nickel (Ni) barrier
  • Terminal Position
  • SINGLE
  • Number of Functions
  • 1
  • Reach Compliance Code
  • not_compliant
  • Base Part Number
  • LT1764
  • Pin Count
  • 5
  • Current - Supply (Max)
  • 200mA
  • Number of Outputs
  • 1
  • Output Voltage
  • 20V
  • Output Type
  • Adjustable
  • Operating Supply Current
  • 1mA
  • Current - Output
  • 3A
  • Control Features
  • Enable
  • Max Output Voltage
  • 20V
  • Number of Regulators
  • 1
  • Min Input Voltage
  • 2.7V
  • Protection Features
  • Over Current, Over Temperature, Reverse Polarity
  • Current - Quiescent (Iq)
  • 1.5mA
  • Voltage Dropout (Max)
  • 0.66V @ 3A
  • PSRR
  • 63dB (120Hz)
  • Dropout Voltage
  • 340mV
  • Dropout Voltage1-Nom
  • 0.34V
  • Min Output Voltage
  • 1.21V
  • Power Supply Rejection Ratio (PSRR)
  • 63dB
  • Min Current Limit
  • 3.1A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT1764AET#30PBF.

Datasheets:

ConflictMineralStatement:

LT1764AET#30PBF Overview


In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-220-5 Formed Leads case. The PMIC chip has 5 terminations. Adjustable is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Through Hole are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 3A are being output by it at the moment. The sum of the pins in this unit is 5. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 5 axis. Here's the basic part number for this IC regulator: LT1764. This regulator IC is operated by a 1mA-volt supply current.

LT1764AET#30PBF Features


340mV dropout voltage


LT1764AET#30PBF Applications


There are a lot of Linear Technology/Analog Devices
LT1764AET#30PBF Linear Voltage Regulators applications.


  • Switching regulator
  • Multiple-power supply system
  • Digital audio player
  • Digital TV
  • Smartcard
  • Industrial equipment
  • DVD and CD-ROM drive
  • Quick charge protocols
  • Measurement and control euipment
  • Aging system
