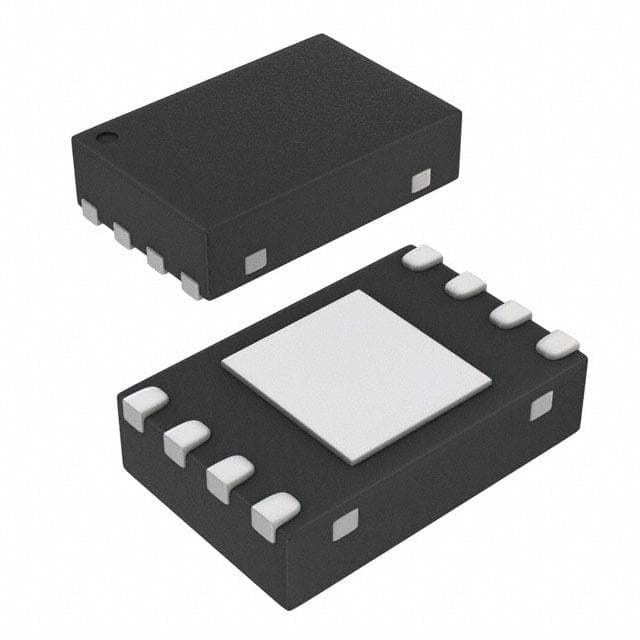

Renesas ISL89165FRTCZ-T

Manufacturer No:

ISL89165FRTCZ-T

Manufacturer:

Renesas

Package:

Description:

Active EAR99 Gate Drivers ICs 2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL89165FRTCZ-T information

Renesas ISL89165FRTCZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL89165FRTCZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
8

Published
2010

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Max Output Current
6A

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
16V

Min Supply Voltage
7.5V

Operating Supply Current
5mA

Current - Output
6A

Turn On Delay Time
25 ns

Rise Time
20ns

Fall Time (Typ)
20 ns

Turn-Off Delay Time
25 ns

Interface IC Type
AND GATE BASED MOSFET DRIVER

Number of Drivers
2

Turn On Time
0.05 µs

Output Peak Current Limit-Nom
6A

High Side Driver
YES

Turn Off Time
0.05 µs

Length
3mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL89165FRTCZ-T.

Datasheets:

intersil-isl89165frtczt-datasheets-4248.pdf

ISL89165FRTCZ-T Overview

This device is equipped with 2 drivers for its configuration.It's configured with 8 terminations.The device is mounted with Surface Mount.There are 8 pins available in the device.Mosfet driver is designed specifically to run on 12V volts of power.The interface IC is referred to as AND GATE BASED MOSFET DRIVER.There is a maximum output current of 6A that can be achieved.Mosfet driver includes a number of useful electronic components in Mosfet drivers subcategory of MOSFET Drivers.A maximum operating temperature of 125°C is permissible.There is a minimum operating temperature of -40°C.When the supply voltage is 16V, it is at its maximum operation.In order for the device to operate, a supply voltage of 7.5V must be applied.Mosfet gate drivers outputs a current of 6A at the moment.The device operates on a voltage of 5mA as the supply voltage.
