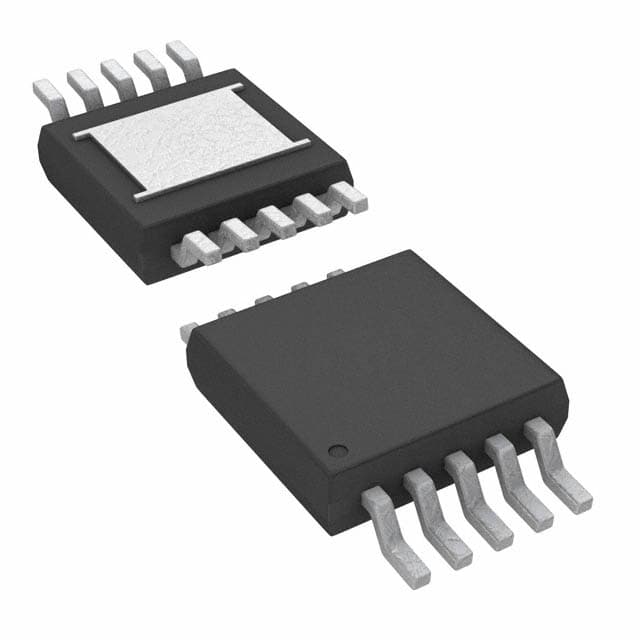

ADI LTC7001IMSE#PBF

Manufacturer No:

LTC7001IMSE#PBF

Manufacturer:

ADI

Package:

10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad

Description:

Surface Mount Tube Active Gate Drivers ICs Non-Inverting 1 135V V 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad LTC7001 High-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC7001IMSE#PBF information

ADI LTC7001IMSE#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC7001IMSE#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad

Number of Pins
10

Operating Temperature
-40°C~125°C TJ

Packaging
Tube

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
3.5V~15V

Base Part Number
LTC7001

Pin Count
10

Input Type
Non-Inverting

Rise / Fall Time (Typ)
90ns 40ns

Channel Type
Single

Number of Drivers
1

Driven Configuration
High-Side

Gate Type
N-Channel MOSFET

High Side Voltage - Max (Bootstrap)
135V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC7001IMSE#PBF.

LTC7001IMSE#PBF Overview

A higher level of flexibility is provided by its 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad package.A packaging method of Tube is used.1 drivers are incorporated for its configuration.In this case, gate drivers is mounted along the way of Surface Mount.When the supply voltage is 3.5V~15V it is able to demonstrate its superiority.A gate type of N-Channel MOSFET has been used in its design.Temperature range -40°C~125°C TJ is allowed for this device.Mosfet driver accepts input of type Non-Inverting.Mosfet driver is possible to find various related parts under Mosfet drivers base part number LTC7001.When the device is designed, it has 10 pins.The board contains 10 pins for component connections.A high-side voltage can be set up to 135V (Bootstrap).

LTC7001IMSE#PBF Features

Embedded in the Tube package
1 drivers
Employing a gate type of N-Channel MOSFET
10 pins
High-side voltage - Max (Bootstrap) of 135V

LTC7001IMSE#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC7001IMSE#PBF gate drivers applications.

RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
