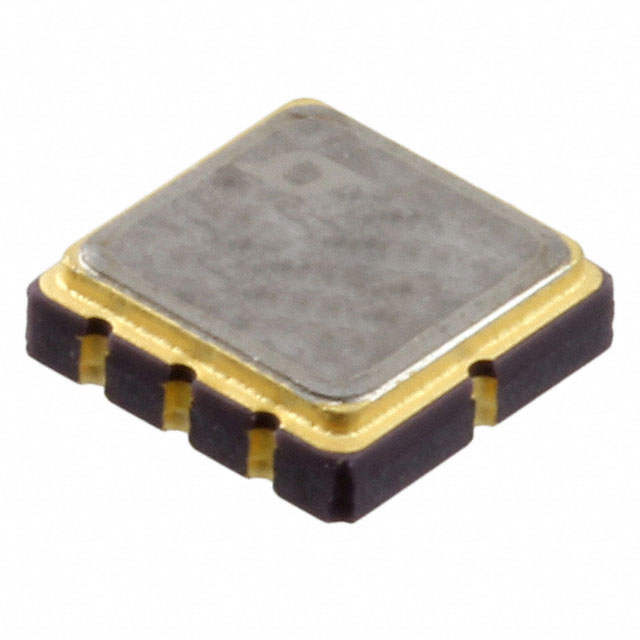

ADI LTC6652AHLS8-2.5#PBF

Manufacturer No:

LTC6652AHLS8-2.5#PBF

Manufacturer:

ADI

Package:

8-CLCC

Description:

-40°C~125°C TA Fixed 1.27mm PMIC LTC6652 8-CLCC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC6652AHLS8-2.5#PBF information

ADI LTC6652AHLS8-2.5#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC6652AHLS8-2.5#PBF.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
8-CLCC

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Tolerance
±0.05%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Temperature Coefficient
5ppm/°C

HTS Code
8542.39.00.01

Subcategory
Voltage References

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LTC6652

Pin Count
8

JESD-30 Code
S-CQCC-N8

Qualification Status
Not Qualified

Output Voltage
2.5V

Output Type
Fixed

Supply Voltage-Max (Vsup)
13.2V

Supply Voltage-Min (Vsup)
2.8V

Trim/Adjustable Output
NO

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Voltage - Input
2.8V~13.2V

Current - Output
5mA

Current - Supply
560?A

Voltage - Output (Min/Fixed)
2.5V

Reference Type
Series

Output Voltage-Max
2.50125V

Temp Coef of Voltage-Max
5 ppm/°C

Noise - 0.1Hz to 10Hz
2.1ppmp-p

Length
5mm

Height Seated (Max)
1.55mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC6652AHLS8-2.5#PBF.

Datasheets:

lineartechnologyanalogdevices-ltc6652bhms825trpbf-datasheets-7190.pdf

LTC6652AHLS8-2.5#PBF Overview

There is a handy package 8-CLCC used in this program.Series control is used to control the part as a voltage reference.An external package of Tray encloses the voltage reference ic.Terminations with various functions 8.Voltage measurements with a tolerance of ±0.05%.An analog IC THREE TERMINAL VOLTAGE REFERENCE is coupled to the voltage reference ic.The output voltage 2.5V is determined by test statistics.The output should be 1.Input can be entered on a Fixed form.It contains 8 pins.The temperature should not rise above NOT SPECIFIED during reflow soldering.If you are designing a PCB that requires a high level of precision, Surface Mount is available.Within -40°C~125°C TA range of work.It can be used in a variety of applications due to its Voltage References type.The search term "LTC6652" will return other relevant parts.It is able to handle 5mA input applications.For it to work, it requires a voltage of 2.8V volts.It is common for the voltage reference circuit to accept a voltage input of 2.8V~13.2V.In this case, 2.5V is the fixed/minimum voltage generated.As a result of its operation, the supply current used is 560?A.We test the voltage reference circuit's greatest voltage output 2.50125V.

LTC6652AHLS8-2.5#PBF Features

±0.05% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT SPECIFIED
Current Supply: 560?A

LTC6652AHLS8-2.5#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC6652AHLS8-2.5#PBF Voltage Reference applications.

Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
