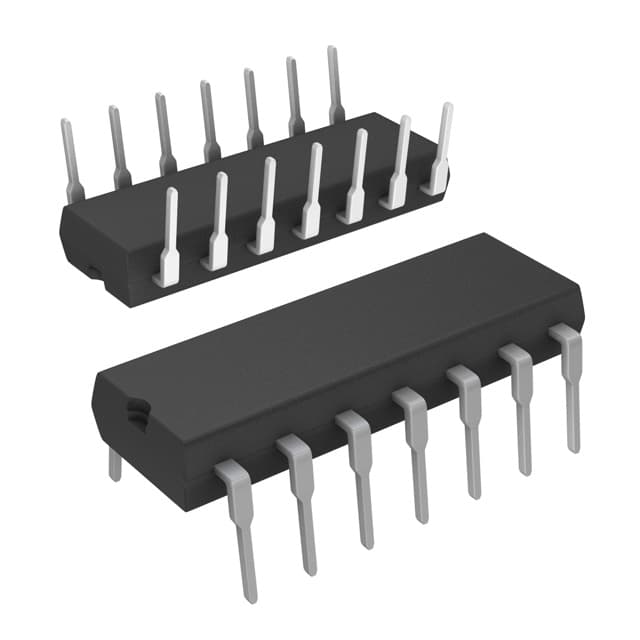

ADI LT1125CJ
Manufacturer No:
LT1125CJ
Manufacturer:
Package:
14-CDIP (0.300, 7.62mm)
Description:
7nA 122 dB Instrumentational OP Amps ±4V~18V LT1125 14 Pins 14-CDIP (0.300, 7.62mm)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LT1125CJ information
ADI LT1125CJ technical specifications, attributes, parameters and parts with similar specifications to ADI LT1125CJ.
- Type
- Parameter
- Mounting Type
- Through Hole
- Package / Case
- 14-CDIP (0.300, 7.62mm)
- Surface Mount
- NO
- Operating Temperature
- 0°C~70°C
- Packaging
- Tube
- JESD-609 Code
- e0
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 14
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Subcategory
- Operational Amplifier
- Technology
- BIPOLAR
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 4
- Supply Voltage
- 15V
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- LT1125
- Pin Count
- 14
- Qualification Status
- Not Qualified
- Power Supplies
- +-15V
- Number of Circuits
- 4
- Current - Supply
- 2.3mA
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- General Purpose
- Common Mode Rejection Ratio
- 122 dB
- Current - Input Bias
- 7nA
- Voltage - Supply, Single/Dual (±)
- ±4V~18V
- Gain Bandwidth Product
- 12.5MHz
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Unity Gain BW-Nom
- 12500 kHz
- Low-Offset
- YES
- Frequency Compensation
- YES
- Supply Voltage Limit-Max
- 22V
- Voltage - Input Offset
- 30μV
- Bias Current-Max (IIB) @25C
- 0.03μA
- Neg Supply Voltage-Max (Vsup)
- -22V
- Voltage Gain-Min
- 800000
- Height Seated (Max)
- 5.08mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI LT1125CJ.
ConflictMineralStatement:
LT1125CJ Overview
There is a 14-CDIP (0.300, 7.62mm) case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the General Purpose-type. Upon delivery, op amp ic is packaged in a Tube case. We are approaching the 14h termination of the year. In total, there are 14 pins on this op amp ic. This linear amplifier should be powered by an 15V battery. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them. This electrical part should be mounted using type Through Hole. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around 0°C~70°C . This op amp contains 4 circuits. It is recommended that you use an 2.3mA power supply with this electrical part in order for it to operate correctly. This op amp ic is capable of conducting at least 800000 voltage gains.
LT1125CJ Features
14 Pins
supply voltage of 15V
LT1125CJ Applications
There are a lot of Linear Technology/Analog Devices
LT1125CJ Instrumentational OP Amps applications.
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
