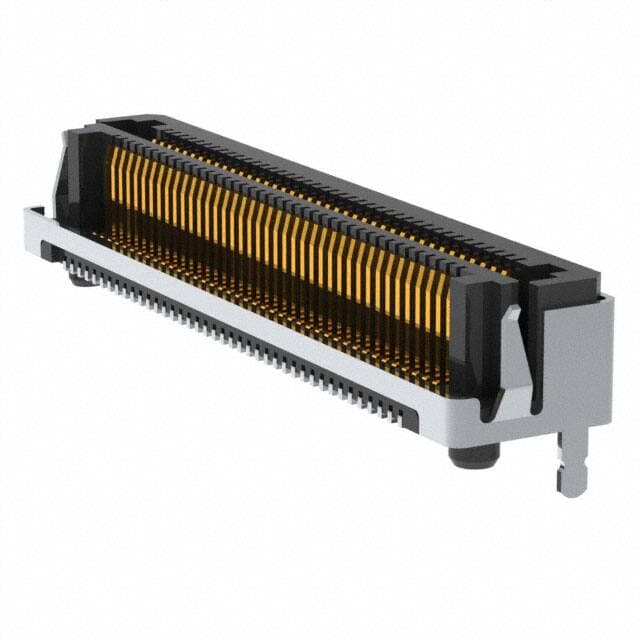

Samtec LSHM-140-02.5-L-DV-A-S-K-TR

Manufacturer No:

LSHM-140-02.5-L-DV-A-S-K-TR

Manufacturer:

Package:

Description:

Self Mating, Non-Gendered Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 80 Positions Razor Beam™ LSHM Gold Solder Bronze

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LSHM-140-02.5-L-DV-A-S-K-TR information

Samtec LSHM-140-02.5-L-DV-A-S-K-TR technical specifications, attributes, parameters and parts with similar specifications to Samtec LSHM-140-02.5-L-DV-A-S-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Bronze

Mounting Type
Surface Mount

Housing Material
Polymer

Mounting Option 1
LOCKING

Board Mounting Option
PEG

Packaging
Tape & Reel (TR)

Series
Razor Beam™ LSHM

JESD-609 Code
e3

Feature
Board Guide, Pick and Place, Shielded

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Self Mating, Non-Gendered

Number of Positions
80

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Number of Rows
2

Gender
Hermaphroditic

Additional Feature
RAZOR BEAM SYSTEM, SHIELDED

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.020 0.50mm

Total Number of Contacts
80

Orientation
Straight

Depth
4.89mm

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Body Breadth
0.196 inch

Housing Color
Black

Rated Current (Signal)
2A

Contact Style
BELLOWED TYPE

Contact Resistance
15mOhm

Insulation Resistance
1000000000Ohm

Polarization Key
POLARIZED HOUSING

Dielectric Withstanding Voltage
470VAC V

PCB Contact Row Spacing
3.7084 mm

Durability
100 Cycles

Download datasheets and manufacturer documentation for Samtec LSHM-140-02.5-L-DV-A-S-K-TR.

LSHM-140-02.5-L-DV-A-S-K-TR Overview

This product is packaged in a Self Mating, Non-Gendered box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the Razor Beam™ LSHM Series.It is possible to ensure that Board Guide, Pick and Place, Shielded remains constant during operation.Use it below 125°C.A minimum temperature of -55°C must be maintained for the operation of this device.Furthermore, there are other features such as RAZOR BEAM SYSTEM, SHIELDED, to name a few.

LSHM-140-02.5-L-DV-A-S-K-TR Features

Razor Beam™ LSHM series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: RAZOR BEAM SYSTEM, SHIELDED

LSHM-140-02.5-L-DV-A-S-K-TR Applications

There are a lot of Samtec Inc.
LSHM-140-02.5-L-DV-A-S-K-TR Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
