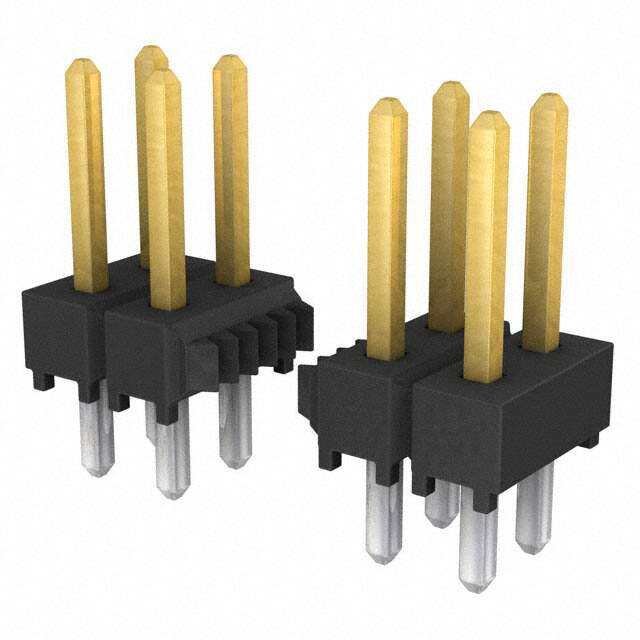

SAMTEC TSW-113-23-S-D

Manufacturer No:

TSW-113-23-S-D

Manufacturer:

Package:

Description:

TSW Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 26-Position Board to Board or Cable 0.100 2.54mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSW-113-23-S-D information

SAMTEC TSW-113-23-S-D technical specifications, attributes, parameters and parts with similar specifications to SAMTEC TSW-113-23-S-D.

Type
Parameter

Factory Lead Time
1 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT)

Housing Material
Polyester

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
TSW

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
26

Number of Rows
2

Gender
Male

Additional Feature
E.L.P.

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Depth
5.08mm

Insulation Height
0.100 2.54mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.115 2.92mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Finish - Post
Tin

Contact Length - Mating
0.230 5.84mm

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.1 inch

Housing Color
Black

Download datasheets and manufacturer documentation for SAMTEC TSW-113-23-S-D.

TSW-113-23-S-D Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the TSW Series.Moreover, there are a number of other features, including E.L.P., to name just a few.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
