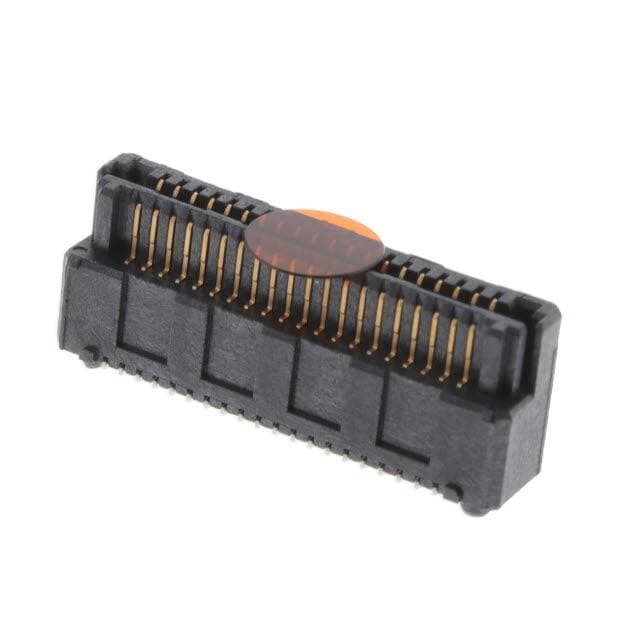

SAMTEC LSEM-120-06.0-L-DV-A-N-K-TR

Manufacturer No:

LSEM-120-06.0-L-DV-A-N-K-TR

Manufacturer:

Package:

Description:

Self Mating, Non-Gendered Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 40 Positions Razor Beam™ LSEM Gold PHOSPHOR BRONZE

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LSEM-120-06.0-L-DV-A-N-K-TR information

SAMTEC LSEM-120-06.0-L-DV-A-N-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC LSEM-120-06.0-L-DV-A-N-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
PHOSPHOR BRONZE

Mounting Type
Surface Mount

Insulation Material
LIQUID CRYSTAL POLYMER (LCP)

Mounting Option 1
LOCKING

Board Mounting Option
PEG

Packaging
Tape & Reel (TR)

Series
Razor Beam™ LSEM

JESD-609 Code
e3

Feature
Pick and Place

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Self Mating, Non-Gendered

Number of Positions
40

Number of Rows
2

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.031 0.80mm

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Body Length or Diameter
0.803 inch

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Body Breadth
0.196 inch

Contact Gender
HERMAPHRODITIC

Operating Temperature (Min)
-55°C

Rated Current (Signal)
1.8A

Contact Style
BELLOWED TYPE

Body/Shell Style
SOCKET

Polarization Key
POLARIZED HOUSING

PCB Contact Row Spacing
3.7084 mm

Contact Pattern
RECTANGULAR

Insulator Color
BLACK

Contact Finish Thickness
10.0μin 0.25μm

Plating Thickness
10μin

Height Above Board
0.293 7.45mm

Stack Height (Mating)
9mm 10mm 12mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SAMTEC LSEM-120-06.0-L-DV-A-N-K-TR.

LSEM-120-06.0-L-DV-A-N-K-TR Overview

The packaging contains Self Mating, Non-Gendered.This product is packaged in a case marked Tape & Reel (TR).There is a Surface Mount mounting type for the device.Product number Razor Beam™ LSEM belongs to the Razor Beam™ LSEM Series.Operating the device, it is possible to maintain Pick and Place.
