SAMTEC HLE-107-02-S-DV-BE-K-TR

Manufacturer No:

HLE-107-02-S-DV-BE-K-TR

Manufacturer:

Package:

Description:

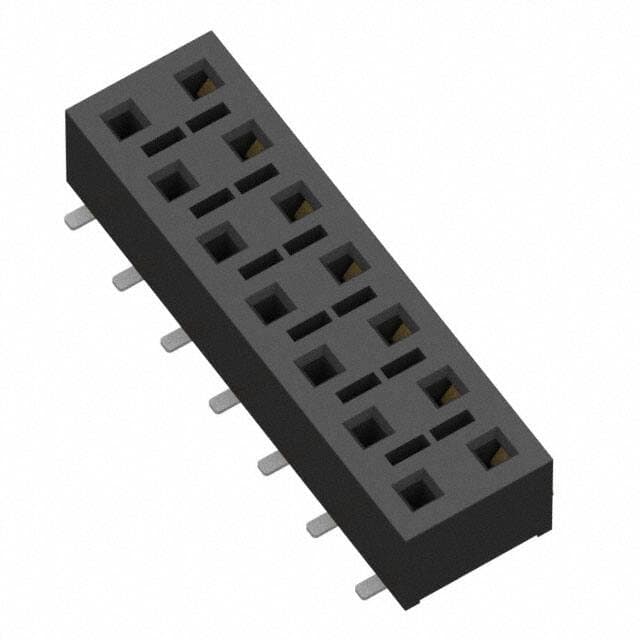

2 Rows Receptacle, Bottom Entry Solder Beryllium Copper Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 14 Positions Female Socket

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HLE-107-02-S-DV-BE-K-TR information

SAMTEC HLE-107-02-S-DV-BE-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC HLE-107-02-S-DV-BE-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Beryllium Copper

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP)

Mounting Option 1
LOCKING

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
HLE

JESD-609 Code
e3

Feature
Pick and Place

Pbfree Code
yes

Part Status
Active

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle, Bottom Entry

Number of Positions
14

Number of Rows
2

Gender
Female

Voltage - Rated
400VAC

Additional Feature
BOTTOM ENTRY, TIGER BEAM CONTACT

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Female Socket

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
4.1A per Contact

Total Number of Contacts
14

Insulation Height
0.144 3.66mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Body Length or Diameter
0.7 inch

Row Spacing - Mating
0.100 (2.54mm)

Number Of PCB Rows
2

Contact Finish - Post
Tin

PCB Contact Pattern
RECTANGULAR

Body Depth
0.099 inch

Download datasheets and manufacturer documentation for SAMTEC HLE-107-02-S-DV-BE-K-TR.

HLE-107-02-S-DV-BE-K-TR Overview

The packaging contains Receptacle, Bottom Entry.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number HLE belongs to the HLE Series.Further, there are features such as BOTTOM ENTRY, TIGER BEAM CONTACT, to name only a few.In many ways, it is more powerful due to its Pick and Place feature.This device operates at a temperature of -55°C~125°C.

HLE-107-02-S-DV-BE-K-TR Features

HLE series

HLE-107-02-S-DV-BE-K-TR Applications

There are a lot of Samtec Inc.
HLE-107-02-S-DV-BE-K-TR Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
