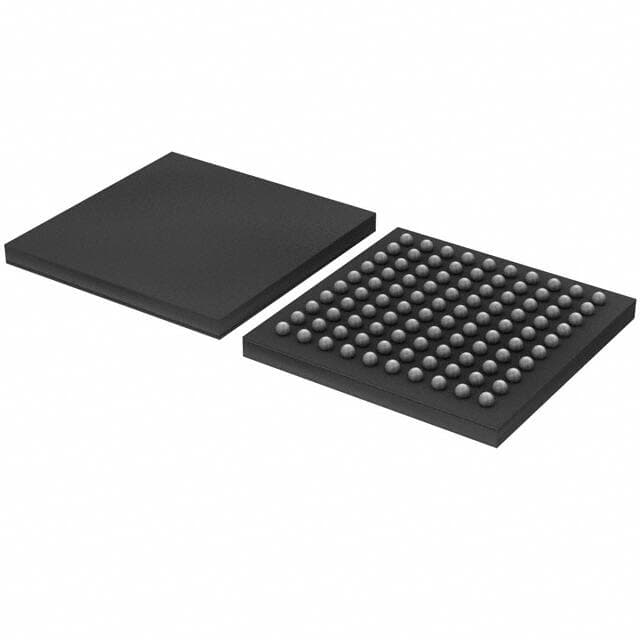

NXP LPC4370FET100E

LPC4370FET100E Description

The LPC4370FET100E is an Arm Cortex-M4-based microcontroller for embedded applications. It features an Arm Cortex-M0 coprocessor, an Arm Cortex-M0 subsystem for managing peripherals, 282 kB of SRAM, advanced configurable peripherals like the State Configurable Timer (SCT), Serial General Purpose I/O (SGPIO) interface, two High-speed USB controllers, Ethernet, LCD, an external memory controller, and numerous digital Up to 204 MHz of CPU frequency can be used by the LPC4370.

With system improvements like reduced power consumption, improved debug tools, and a high level of support block integration, the Arm Cortex-M4 is a next-generation 32-bit core. The Harvard architecture, 3-stage pipeline, separate local instruction and data buses, third bus for peripherals, and internal prefetch unit with capability for speculative branching are all features of the Arm Cortex-M4 CPU. Single-cycle digital signal processing and SIMD instructions are supported by the Arm Cortex-M4 processor. The core contains an integrated hardware floating-point processor.

An application Arm Cortex-M0 coprocessor and a second Arm Cortex-M0 subsystem for controlling the SGPIO and SPI peripherals are both included in the LPC4370FET100E. The 32-bit Arm Cortex-M0 core is a low-power, user-friendly core that is code and tool compatible with the Cortex-M4 core. The performance of both Cortex-M0 cores, which have a small code size and a limited instruction set, is up to 204 MHz.

LPC4370FET100E Features

• On-chip memory:

264 kB SRAM for code and data use on the main AHB multilayer matrix plus 18 kB of SRAM on the Cortex-M0 subsystem

Multiple SRAM blocks with separate bus access. Two SRAM blocks can be powered down individually

64 kB ROM containing boot code and on-chip software drivers

64-bit + 256 bit general-purpose One-Time Programmable (OTP) memory

• Configurable digital peripherals:

Serial GPIO (SGPIO) interface

State Configurable Timer (SCT) subsystem on AHB

Global Input Multiplexer Array (GIMA) allows to cross-connect multiple inputs and outputs to event driven peripherals like the timers, SCT, and ADC0/1

• Main Cortex-M4 processor:

Arm Cortex-M4 processor, running at frequencies of up to 204 MHz

Arm Cortex-M4 built-in Memory Protection Unit (MPU) supporting eight regions

Arm Cortex-M4 built-in Nested Vectored Interrupt Controller (NVIC)

Hardware floating-point unit

Non-maskable Interrupt (NMI) input

JTAG and Serial Wire Debug (SWD), serial trace, eight breakpoints, and four watch points

Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support

System tick timer

• Cortex-M0 coprocessor:

Arm Cortex-M0 coprocessor capable of off-loading the main Arm Cortex-M4 processor

Running at frequencies of up to 204 MHz

JTAG and built-in NVIC

Cortex-M0 subsystem:

Arm Cortex-M0 processor controlling the SPI and SGPIO peripherals residing on a separate AHB multilayer matrix with direct access to 2 kB + 16 kB of SRAM

Running at frequencies of up to 204 MHz

Connected via a core-to-core bridge to the main AHB multilayer matrix and the main Arm Cortex-M4 processor

JTAG and built-in NVIC

LPC4370FET100E Applications

• RFID readers

• Embedded audio applications

• Industrial automation

• e-metering

• Motor control

• Power management

• White goods
