TI LM49200TLX/NOPB

Manufacturer No:

LM49200TLX/NOPB

Manufacturer:

Package:

20-UFBGA

Description:

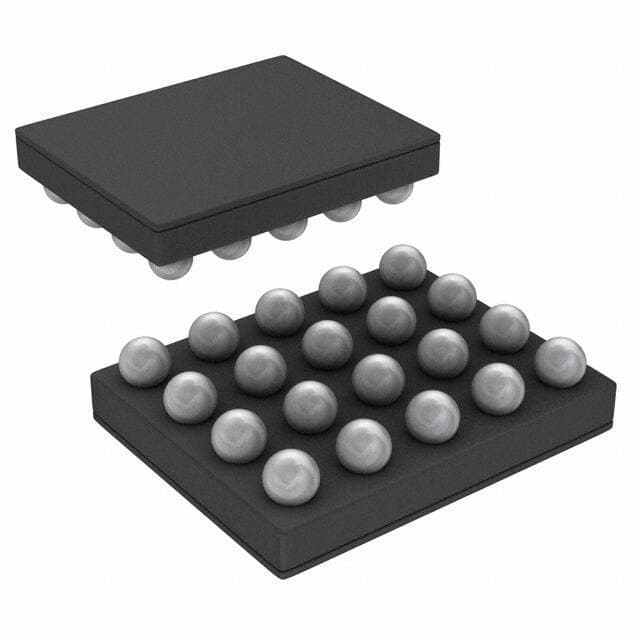

1.25W W Audio Amplifiers 675?m mm 2.3mm mm 20 pins 20-UFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM49200TLX/NOPB information

TI LM49200TLX/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM49200TLX/NOPB.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-UFBGA

Number of Pins
20

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
Boomer®

JESD-609 Code
e1

Feature
Depop, Differential Inputs, I2C, Shutdown, Thermal Protection, Volume Control

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Audio/Video Amplifiers

Voltage - Supply
2.7V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Base Part Number
LM49200

Output Type
2-Channel (Stereo) with Stereo Headphones

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
2.7V

Number of Channels
4

Supply Current-Max
9.8mA

Output Power
1.25W

Common Mode Rejection Ratio
60 dB

Supply Type
Dual

Power Supply Rejection Ratio (PSRR)
90dB

Max Dual Supply Voltage
5.5V

Max Output Power
1.25W

Dual Supply Voltage
5V

Max Output Power x Channels @ Load
1.25W x 2 @ 8 ?; 38mW x 2 @ 32 ?

Channel Separation
80 dB

Height
675?m

Length
2.5mm

Width
2.3mm

Thickness
675?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LM49200TLX/NOPB.

LM49200TLX/NOPB Overview

The device is embedded in 20-UFBGA .The device is in the form of Tape & Reel (TR) .As a consequence, there are 20 terminations, which involve ending a transmission line with a device matching the characteristic impedance of the line.This output is configured with 2-Channel (Stereo) with Stereo Headphones .There is Class AB type of electrical device associated with this device.Computers and other communication devices feature 20 pins, which are pronged contacts.A part of this electronic device is mounted in the way of Surface Mount .Its supply voltage is 2.7V~5.5V volts.4 channels are provided by the device.During operation, the value Depop, Differential Inputs, I2C, Shutdown, Thermal Protection, Volume Control can be ensured.A maximum operating temperature of -40°C~85°C TA should be maintained.The part belongs to Audio/Video Amplifiers .The LM49200 family contains this object.A part of this electronic device is mounted in the way of Surface Mount .An electronic part such as this has a maximum output power of 1.25W kWh per hour.To ensure normal operation, it is important to maintain the supply voltage (Vsup) above 2.7V .Supply type Dual is assigned to this electronic part.The system is powered by a 3.3V battery.The electronic part belongs to the Boomer® series.9.8mA is the maximum supply current.
