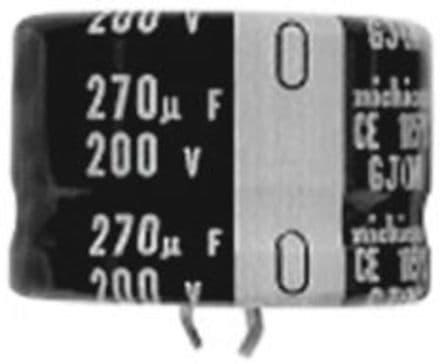

NICHICON LGJ2D221MELA

Manufacturer No:

LGJ2D221MELA

Manufacturer:

NICHICON

Package:

Radial, Can - Snap-In

Description:

LGJ 220?F Capacitor ±20% Bulk Through Hole 850mA 0.984Dia 25.00mm -40°C~105°C Polar 10mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGJ2D221MELA information

NICHICON LGJ2D221MELA technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGJ2D221MELA.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Number of Pins
2

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
LGJ

Published
2009

Size / Dimension
0.984Dia 25.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Snap in

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
200V

Lead Pitch
10mm

Lead Spacing
0.394 10.00mm

Lead Diameter
800 ?m

Voltage
200V

Lifetime @ Temp
3000 Hrs @ 105°C

Leakage Current
620?A

Ripple Current
850mA

Test Frequency
120Hz

Polarization
Polar

Life (Hours)
3000 hours

Ripple Current @ Low Frequency
850mA @ 120Hz

Ripple Current @ High Frequency
1.275A @ 50kHz

Dissipation Factor
0.15 %

Diameter
25mm

Height
20mm

Height Seated (Max)
0.866 22.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LGJ2D221MELA.

Datasheets:

nichicon-lgj2g470melz-datasheets-9543.pdf

LGJ2D221MELA Overview

As far as the ripple current is concerned, it is 1.275A @ 50kHz at full charge.As far as the ripple current is concerned, it is 850mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.866 22.00mm.It operates from a 0.15 % dissipation factor.This capacitor operates from a voltage - Rated DC of 200V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

LGJ2D221MELA Features

the ripple current is 1.275A @ 50kHz.
the ripple current is 850mA @ 120Hz.
a dissipation factor of 0.15 %
voltage - Rated DC of 200V
an operating temperature of -40°C~105°C

LGJ2D221MELA Applications

There are a lot of Nichicon
LGJ2D221MELA applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
