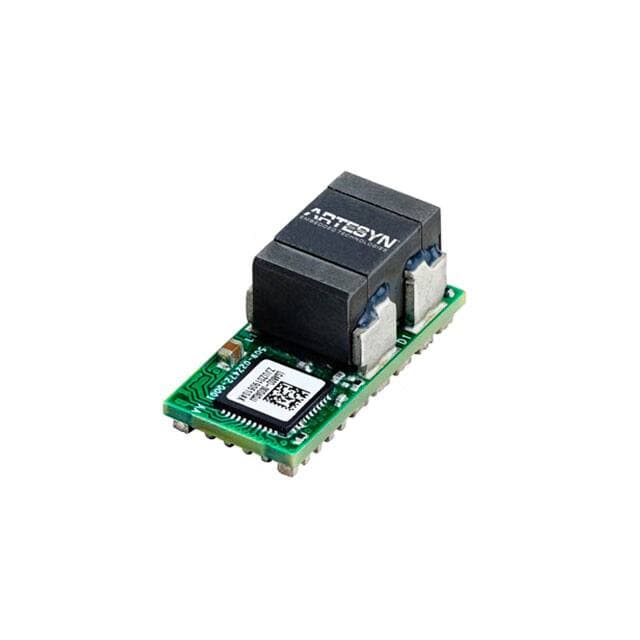

Artesyn Embedded Power LGA80D-00DADJJ

Manufacturer No:

LGA80D-00DADJJ

Manufacturer:

Artesyn Embedded Power

Package:

28-SMD Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGA80D-00DADJJ information

Artesyn Embedded Power LGA80D-00DADJJ technical specifications, attributes, parameters and parts with similar specifications to Artesyn Embedded Power LGA80D-00DADJJ.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-SMD Module

Number of Pins
28

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
LGA80D

Published
2016

Size / Dimension
1.00Lx0.50W x 0.48 H 25.4mmx12.7mmx12.2mm

Feature
Remote On/Off, OCP, OTP, OVP

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Type
Non-Isolated PoL Module, Digital

Applications
ITE (Commercial)

Peak Reflow Temperature (Cel)
245

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
30

Number of Outputs
2

Efficiency
95.5%

Voltage - Input (Max)
14V

Output Voltage
5.2V

Max Output Current
40A

Voltage - Input (Min)
7V

Current - Output (Max)
40A 40A

Output Power
200W

Voltage - Output 2
0.6V~5.2V

Height
12.192mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Artesyn Embedded Power LGA80D-00DADJJ.

Datasheets:

artesynembeddedpower-lga80d00dadjj-datasheets-6612.pdf

artesynembeddedpower-lga80d00dadjj-datasheets-6614.pdf

artesyn-lga80d00dadjj-datasheets-1895.pdf

artesyn-lga80d00dadjj-datasheets-1896.pdf

Description:

The Artesyn LGA80D-00DADJJ is a digital dual output non-isolated DC-DC converter. It is designed to provide a reliable, efficient, and cost-effective power solution for a wide range of applications. The converter features a wide input voltage range of 4.5V to 36V, and a wide output voltage range of 0.6V to 5.5V. It also offers a high efficiency of up to 95%, and a wide operating temperature range of -40°C to +85°C.

Features:

? Wide input voltage range of 4.5V to 36V
? Wide output voltage range of 0.6V to 5.5V
? High efficiency of up to 95%
? Wide operating temperature range of -40°C to +85°C
? Digital control and monitoring
? Over-voltage, over-current, and short-circuit protection
? RoHS compliant

Applications:

The Artesyn LGA80D-00DADJJ is suitable for a wide range of applications, including industrial, automotive, medical, and consumer electronics. It can be used in applications such as power supplies, motor drives, LED lighting, and battery charging.
