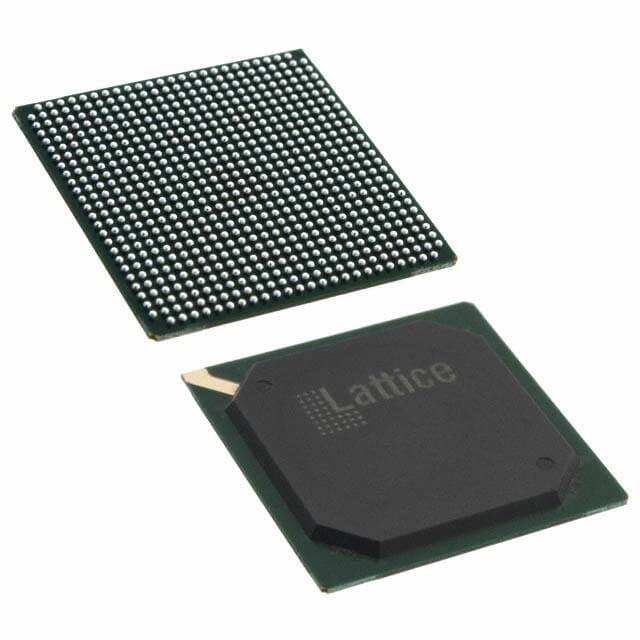

LATTICE LFXP2-40E-6FN672C

Manufacturer No:

LFXP2-40E-6FN672C

Manufacturer:

LATTICE

Package:

672-BBGA

Description:

1.2V V 2.6mm mm 121kB B FPGAs XP2 Series 672-BBGA 1mm mm 672

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFXP2-40E-6FN672C information

LATTICE LFXP2-40E-6FN672C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFXP2-40E-6FN672C.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
672-BBGA

Number of Pins
672

Operating Temperature
0°C~85°C TJ

Packaging
Tray

Series
XP2

Published
2013

JESD-609 Code
e1

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
672

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

HTS Code
8542.39.00.01

Subcategory
Field Programmable Gate Arrays

Technology
CMOS

Voltage - Supply
1.14V~1.26V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
250

Supply Voltage
1.2V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
LFXP2-40

Pin Count
672

Number of Outputs
540

Qualification Status
Not Qualified

Operating Supply Voltage
1.2V

Power Supplies
1.21.2/3.33.3V

Memory Size
121kB

Number of I/O
540

RAM Size
110.6kB

Clock Frequency
435MHz

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Number of Logic Elements/Cells
40000

Total RAM Bits
906240

Number of LABs/CLBs
5000

Combinatorial Delay of a CLB-Max
0.399 ns

Length
27mm

Height Seated (Max)
2.6mm

Width
27mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LATTICE LFXP2-40E-6FN672C.

LFXP2-40E-6FN672C Overview

As part of the 672-BBGA package, it is included. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 540 I/Os allow data to be transferred in a more coherent manner. A fundamental building block consists of 40000 logic elements/cells. It is powered from a supply voltage of 1.2V. The Field Programmable Gate Arrays family of FPGA parts includes this part. With a Surface Mount connector, this FPGA module can be attached to the development board. In order to operate it, it requires a voltage supply of 1.14V~1.26V . It is a type of FPGA that belongs to the XP2 series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of 0°C~85°C TJ when operating the machine. In this device, there are 540 outputs that can be used. In order to save space, this FPGA model has been contained in Tray. There are a total of 672 terminations. This device has 906240 RAM bits, which is the number of RAM bits that this device offers. Its base part number LFXP2-40 can be used to find parts that are related to it. Fpga electronics is important that this FPGA module has a RAM si110.6kBe of 110.6kB in order to ensure that the program will run normally. There are 672 pins on this device. The FPGA consists of 5000 LABs/CLBs. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. Its flexibility can be fully utilized when operating with a 1.2V supply voltage. An external power supply of 1.21.2/3.33.3V is required to power the device. There are a total of 672 pins on this device. Typically, it uses a crystal oscillating at 435MHz in order to operate. A memory of 121kB is embedded in this FPGA module for storing data and programs.

LFXP2-40E-6FN672C Features

540 I/Os
Up to 906240 RAM bits
672 LABs/CLBs

LFXP2-40E-6FN672C Applications

There are a lot of Lattice Semiconductor Corporation
LFXP2-40E-6FN672C FPGAs applications.

Bioinformatics
Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
