LATTICE ICE40LP8K-CM121

Manufacturer No:

ICE40LP8K-CM121

Manufacturer:

LATTICE

Package:

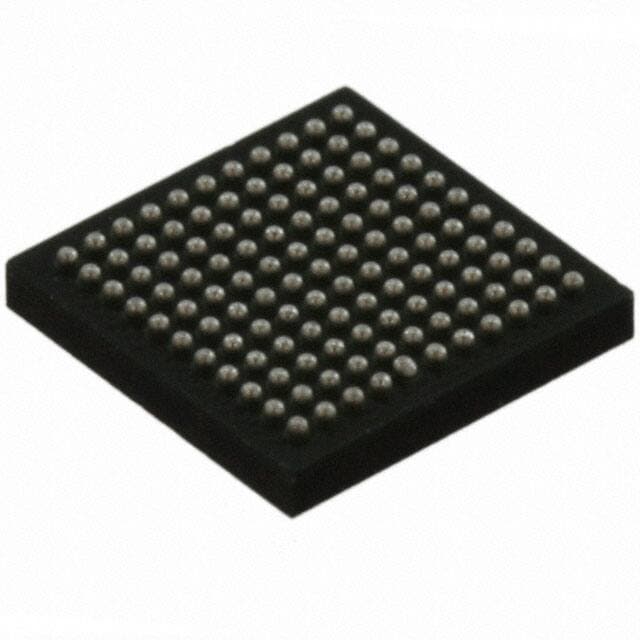

UCBGA-121

Description:

Field Programmable Gate Array, 960 CLBs, 133MHz, 7680-Cell, CMOS, PBGA121, UCBGA-121

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICE40LP8K-CM121 information

LATTICE ICE40LP8K-CM121 technical specifications, attributes, parameters and parts with similar specifications to LATTICE ICE40LP8K-CM121.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Package Description
UCBGA-121

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.31.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
133 MHz

Combinatorial Delay of a CLB-Max
9.36 ns

JESD-30 Code
S-PBGA-B121

JESD-609 Code
e1

Length
5 mm

Moisture Sensitivity Level
3

Number of CLBs
960

Number of Inputs
93

Number of Logic Cells
7680

Number of Outputs
93

Number of Terminals
121

Operating Temperature-Max
100 °C

Operating Temperature-Min
-40 °C

Organization
960 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
VFBGA

Package Shape
SQUARE

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
260

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
1 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
INDUSTRIAL

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
0.4 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
30

Width
5 mm

Download datasheets and manufacturer documentation for LATTICE ICE40LP8K-CM121.

Datasheets:

LATT-S-A0019793950-1.pdf

ICE40LP8K-CM121 Overview

A 121-VFBGA package is provided with this component. FPGAs of this type consist of FIELD PROGRAMMABLE GATE ARRAY components. This device features 93 I/Os in order to transfer data in a more efficient manner. An electrical supply voltage of 1.2V powers it. A Field Programmable Gate Arrays-series FPGA part. An FPGA module can be attached to a development board with a Surface Mount-pin. Powered by a 1.14V~1.26V supply voltage, fpga chips is able to operate at high speeds. The FPGA belongs to the iCE40? LP series of FPGAs, and it is one type of FPGA. During the operation of the system, the operating temperature should remain within the range of -40°C~100°C TJ. In order to make this device as versatile as possible, there are 93 different outputs included. It is for space saving reasons that this FPGA model is contained in Tray. As a whole, it has 121 terminations. The RAM bits that are offered by this fpga chips are 131072. Related parts can be found by using its base part number ICE40. The FPGA module's RAM si16kBe reaches 16kB in order to ensure that the program operates in a normal manner. 121 pins are designed into the device. Fpga electronics contains 960 LABs/CLBs in an array. A 1.2V-volt supply allows designers to fully utilize its flexibility. There is a memory of 16kB embedded in this FPGA module, which can be used for storing programs and data. As a result, there are 7680 registers which are used to store and transfer data. In its architecture, there are 960 CLB modules. Using this FPGA, you can get speeds up to 533MHz.

ICE40LP8K-CM121 Features

93 I/Os
Up to 131072 RAM bits
121 LABs/CLBs
7680 registers

ICE40LP8K-CM121 Applications

There are a lot of Lattice Semiconductor Corporation
ICE40LP8K-CM121 FPGAs applications.

Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
