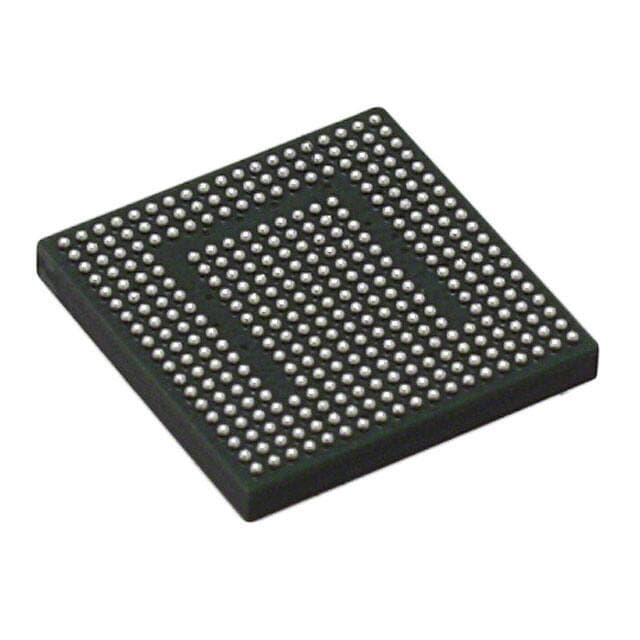

LATTICE LFE3-17EA-6MG328C

Manufacturer No:

LFE3-17EA-6MG328C

Manufacturer:

LATTICE

Package:

328-LFBGA, CSBGA

Description:

1.2V V 1.5mm mm FPGAs ECP3 Series 328-LFBGA, CSBGA 0.5mm mm 328

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFE3-17EA-6MG328C information

LATTICE LFE3-17EA-6MG328C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFE3-17EA-6MG328C.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
328-LFBGA, CSBGA

Number of Pins
328

Operating Temperature
0°C~85°C TJ

Packaging
Tray

Series
ECP3

Published
2012

JESD-609 Code
e1

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
328

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code
8542.39.00.01

Subcategory
Field Programmable Gate Arrays

Voltage - Supply
1.14V~1.26V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.2V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Base Part Number
LFE3-17

Pin Count
328

Number of Outputs
116

Qualification Status
Not Qualified

Operating Supply Voltage
1.2V

Number of I/O
116

RAM Size
87.5kB

Clock Frequency
375MHz

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Number of Logic Elements/Cells
17000

Total RAM Bits
716800

Number of LABs/CLBs
2125

Combinatorial Delay of a CLB-Max
0.379 ns

Length
10mm

Height Seated (Max)
1.5mm

Width
10mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LATTICE LFE3-17EA-6MG328C.

LFE3-17EA-6MG328C Overview

In the package 328-LFBGA, CSBGA, this product is provided. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. A total of 116 I/Os are programmed to ensure a more coherent data transfer. The basic building blocks of logic contain 17000 logic elements/cells. Supply voltage is 1.2V volts. There is a Field Programmable Gate Arrays family component in this FPGA part. By attaching the Surface Mount connector, you can use this FPGA module with your development board. With a supply voltage of 1.14V~1.26V, this device operates with ease. This is a type of FPGA that is part of the ECP3 series of FPGAs. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. In this device, 116 outputs are incorporated in order to provide you with maximum flexibility. As a result of space limitations, this FPGA model has been included in Tray. In total, the terminations of this piece are 328. Fpga electronics is worth mentioning that this device provides 716800 bfpga electronics s of RAM. LFE3-17 is the base part number that can be used to identify related parts. The RAM si87.5kBe of this FPGA module reaches 87.5kB so as to guarantee the normal operation of the program during operation. The device has 328 pins which are included in the design. The FPGA is built as an array of 2125 latches or CLBs. I think, as long as this FPGA is mounted in Surface Mount, it could perform excellently according to its specifications as long as you mount it in Surface Mount. In operation with 1.2V, designers can take advantage of its flexibility to the fullest extent. I am going to present you with a device that is equipped with 328 pins. Fpga semiconductor typically uses a crystal oscillating at 375MHz.

LFE3-17EA-6MG328C Features

116 I/Os
Up to 716800 RAM bits
328 LABs/CLBs

LFE3-17EA-6MG328C Applications

There are a lot of Lattice Semiconductor Corporation
LFE3-17EA-6MG328C FPGAs applications.

Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
Consumer Electronics
Distributed Monetary Systems
Data Center
