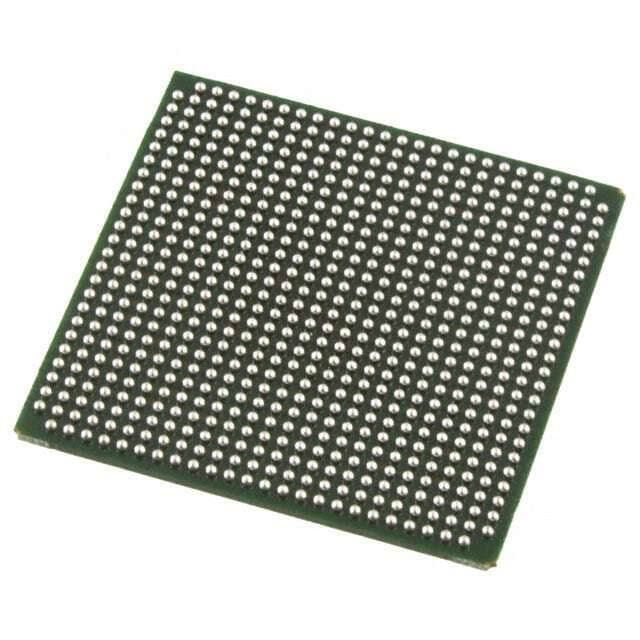

LATTICE LFEC20E-3FN672C

Manufacturer No:

LFEC20E-3FN672C

Manufacturer:

LATTICE

Package:

BGA, BGA672,26X26,40

Description:

Description: Field Programmable Gate Array, 2464 CLBs, 420MHz, 19700-Cell, PBGA672, 27 X 27 MM, 1 MM PITCH, LEAD FREE, PLASTIC, FPBGA-672

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFEC20E-3FN672C information

LATTICE LFEC20E-3FN672C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFEC20E-3FN672C.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
BGA

Package Description
BGA, BGA672,26X26,40

Pin Count
672

Reach Compliance Code
not_compliant

ECCN Code
3A991.D

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
420 MHz

Combinatorial Delay of a CLB-Max
0.56 ns

JESD-30 Code
S-PBGA-B672

JESD-609 Code
e1

Length
27 mm

Moisture Sensitivity Level
3

Number of CLBs
2464

Number of Inputs
400

Number of Logic Cells
19700

Number of Outputs
400

Number of Terminals
672

Operating Temperature-Max
85 °C

Organization
2464 CLBS

Package Code
BGA

Package Equivalence Code
BGA672,26X26,40

Package Shape
SQUARE

Package Style
GRID ARRAY

Peak Reflow Temperature (Cel)
250

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
2.6 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
1 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
40

Width
27 mm

Download datasheets and manufacturer documentation for LATTICE LFEC20E-3FN672C.

Datasheets:

LATT-S-A0000091637-1.pdf

LFEC20E-3FN672C Overview

In the 672-BBGA package, you will find fpga chips. The device has 400 I/O ports for more coherent data transfer. To form a fundamental building block, there are 19700 logic elements/cells. Surface Mount-connectors can be used to attach this FPGA module to the development board. There is a 1.14V~1.26V-volt supply voltage required for the device to operate. The EC Series is one of the types of FPGAs that belong to this type. As far as the operating temperature is concerned, it should be kept within 0°C~85°C TJ when operating. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 434176 bFpga chipss. You can find related parts by using the part number LFEC20, which is its base part number. It is crucial that the RAM si53kBe of this FPGA module reaches 53kB so that the program can run normally. In order to make it work, 672 pins have been designed. In order for this FPGA to work properly in accordance with its specifications, it is necessary that it is mounted in Surface Mount. Its flexibility is fully utilized when operated with a supply voltage of 1.2V. With a total of 672 pins, it is equipped with a high level of security. A basic building block of this system consists of 2464 logic blocks (LABs). For storing programs and data, this FPGA module embeds memory 62.9kB. The high efficiency of this device is provided by its 340MHz-frequency operation.

LFEC20E-3FN672C Features

400 I/Os
Up to 434176 RAM bits
672 LABs/CLBs
2464 logic blocks (LABs)
Operating from a frequency of 340MHz

LFEC20E-3FN672C Applications

There are a lot of Lattice Semiconductor Corporation
LFEC20E-3FN672C FPGAs applications.

Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
