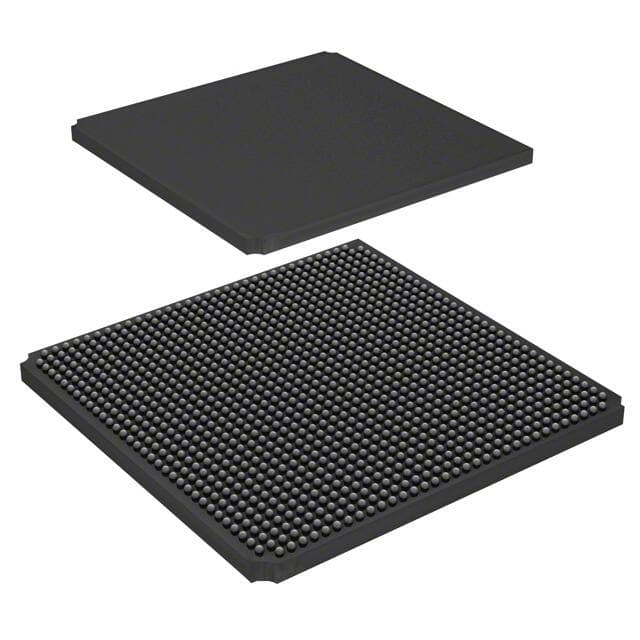

LATTICE LFE2M100E-7FN1152C

Manufacturer No:

LFE2M100E-7FN1152C

Manufacturer:

LATTICE

Package:

FPBGA-1152

Description:

Description: Field Programmable Gate Array, 420MHz, 100000-Cell, PBGA1152, 35 X 35 MM, LEAD FREE, FPBGA-1152

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFE2M100E-7FN1152C information

LATTICE LFE2M100E-7FN1152C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFE2M100E-7FN1152C.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
BGA

Package Description
FPBGA-1152

Pin Count
1152

Reach Compliance Code
compliant

ECCN Code
3A991.D

HTS Code
8542.39.00.01

Clock Frequency-Max
420 MHz

Combinatorial Delay of a CLB-Max
0.304 ns

JESD-30 Code
S-PBGA-B1152

JESD-609 Code
e1

Length
35 mm

Moisture Sensitivity Level
3

Number of Inputs
520

Number of Logic Cells
100000

Number of Outputs
520

Number of Terminals
1152

Operating Temperature-Max
85 °C

Organization
11875 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
BGA

Package Shape
SQUARE

Package Style
GRID ARRAY

Peak Reflow Temperature (Cel)
250

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
2.6 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Finish
TIN SILVER COPPER

Terminal Form
BALL

Terminal Pitch
1 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
40

Width
35 mm

Download datasheets and manufacturer documentation for LATTICE LFE2M100E-7FN1152C.

Datasheets:

LATT-S-A0013315239-1.pdf

LFE2M100E-7FN1152C Overview

A 1152-BBGA package contains it, and it is available for download. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. Its 520 I/Os help it transfer data more efficiently. A fundamental building block contains 95000 logic elements or cells. Power is provided by a 1.2V-volt supply. An FPGA part from the Field Programmable Gate Arrays family. The Surface Mount-slot connector on the FPGA module can be connected to the development board. Fpga chips operates at a voltage of 1.14V~1.26V and uses a battery to supply power. FPGAs belonging to the ECP2M series are a type of FPGA that belong to the ECP2M series of FPGAs. Operating temperatures should be maintained within the 0°C~85°C TJ range at all times when the unit is in use. During the installation of this device, 520 outputs were incorporated. A model of this FPGA is contained in Tray for the purpose of saving space. Having a RAM bit size of 5435392 means that this device will offer you a lot of memory. For related parts, use its base part number LFE2M100. A significant amount of RAM is allocated to this FPGA module to ensure that the program can operate normally. This cable has 1152 pins and is designed to connect to a computer. 11875 LABs/CLBs are integrated into this FPGA. Providing the FPGA is mounted in Surface Mount as per the specifications of the IC, then it should work perfectly according to its specifications. With a 1.2V supply voltage, designers can fully utilize the flexibility of the device. Most commonly, this device makes use of an oscillating crystal frequency of 420MHz to operate. In this FPGA module, there is a memory of 688.8kB available for storing applications and data. As most of the logic cells for the building blocks are 100000 logic cells, it incorporates a lot of logic.

LFE2M100E-7FN1152C Features

520 I/Os
Up to 5435392 RAM bits
1152 LABs/CLBs

LFE2M100E-7FN1152C Applications

There are a lot of Lattice Semiconductor Corporation
LFE2M100E-7FN1152C FPGAs applications.

Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
Consumer Electronics
Distributed Monetary Systems
