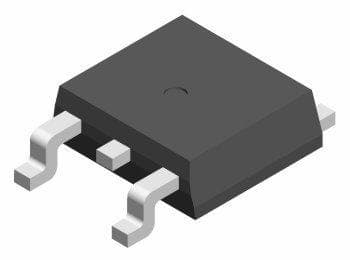

ST LF15ABDT

Manufacturer No:

LF15ABDT

Manufacturer:

Package:

DPAK

Description:

Fixed 2.28mm PMIC 3 DPAK

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LF15ABDT information

ST LF15ABDT technical specifications, attributes, parameters and parts with similar specifications to ST LF15ABDT.

Type
Parameter

Mount
Surface Mount

Package / Case
DPAK

Number of Pins
3

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Technology
BIPOLAR

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
2.28mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
3

JESD-30 Code
R-PSSO-G2

Number of Outputs
1

Output Type
Fixed

Max Output Current
500mA

Polarity
Positive

Quiescent Current
1mA

Accuracy
1 %

Voltage - Output
1.5V

Output Voltage 1
1.5V

Min Input Voltage
2.5V

Current - Input Bias
500μA

Max Input Voltage
16V

Dropout Voltage
1V

Dropout Voltage1-Nom
1V

Voltage Tolerance-Max
2%

Input Voltage Absolute-Max
40V

Length
6.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST LF15ABDT.

LF15ABDT Description

LF15ABDT is a type of very low drop voltage regulator with inhibit function. It provides low drop voltage (0.45 V) and low quiescent current (typ. 50 μA in OFF mode, 500 μA in ON mode), making it ideally suitable for low-noise, low-power applications and especially in battery-powered systems. A capacitor of only 2.2 μF is required for stability, saving board space and costs.

LF15ABDT Features

Very low-dropout voltage

Very low quiescent current

Output current up to 500 mA

Internal current and thermal limit

Only 2.2 μF for stability

LF15ABDT Applications

Low-noise, low-power applications

Battery-powered systems
