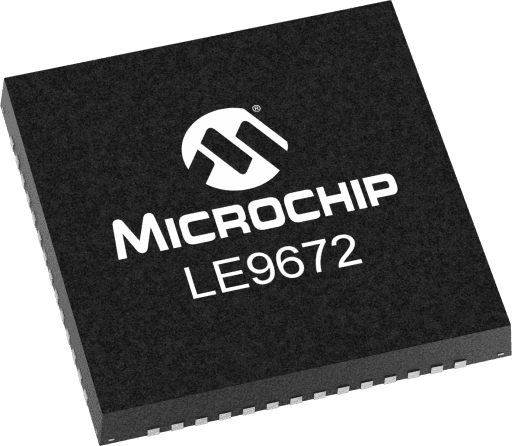

Microchip LE9672WQCT
Manufacturer No:
LE9672WQCT
Manufacturer:
Package:
56-VFQFN Exposed Pad
Description:
The miSLIC™ Series Subscriber Line Interface Circuit together with a VoIP processor or SoC, provides an economical turn-key solution for derived voice applications. The miSLIC device is controlled by a VoIP processor or SoC through a simple, single serial interface.The Le9672 Tracking Battery miSLIC device provides high efficiency, 140 VPK high voltage ringing and system power management functions for two telephone line FXS ports. The dual channel Le9672 features wideband clarity and complete BORSCHT functionality.Manufacturing test and subscriber line testing are standard features. All AC, DC, and power parameters are programmable making the miSLIC device suitable for any application requiring SLIC functionality.
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
LE9672WQCT Information
Microchip LE9672WQCT technical specifications, attributes, parameters and parts with similar specifications to Microchip LE9672WQCT.
- Type
- Parameter
- Application
- Broadband Gateway FXS
- Series
- miSLIC
- Loop Length
- Short
- Battery Topology
- Tracking
- SOC Interface
- ZSI
- Output Voltage (V) max
- 150
- Number of Ports
- 2
- Type
- Parameter
Download datasheets and manufacturer documentation for Microchip LE9672WQCT.
- Economical, fifth generation line interface solution for VoIP processors and SoCs
- Dual Channel Architecture
- Single port 4-wire interface control (ZSI)
- Compatible with numerous VoIP processors and SoC solutions
- Less expensive isolation than multi-port control
- Simplifies board routing
- VoicePath SDK and VP-API-II software available to implement FXS functions
- VeriVoice Professional Test Suite Software
- Comprehensive subscriber loop testing, including Telcordia GR-909-CORE / TIA-1063 diagnostic testing
- Industry leading advanced test software
- VeriVoice Manufacturing Test (VVMT) Package
- Facilitates factory testing and calibration of assembled boards
- High Voltage Tracking Ringing Capability
- Minimized power dissipation in all states
- 5 REN
- Up to 140 Vpk internal ringing with programmable DC offset
- Adaptive ringing power management
- Integrated Power Management
- Switching power supply tracks line voltage minimizing active and ringing power dissipation
- Low cost, 2-Layer PCB reference designs
- Complete wideband BORSCHT functionality
- Worldwide programmability
- Per channel narrowband or wideband operation
