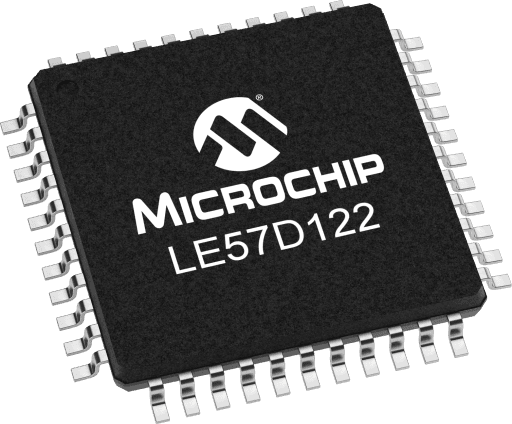

Microchip LE57D122BTCT

Manufacturer No:

LE57D122BTCT

Manufacturer:

Microchip

Package:

44-TQFP Exposed Pad

Description:

The innovative Le57D122 dual-channel SLIC device was designed for high-density POTS applications

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LE57D122BTCT information

Microchip LE57D122BTCT technical specifications, attributes, parameters and parts with similar specifications to Microchip LE57D122BTCT.

Type
Parameter

Category
Integrated Circuits (ICs)

Manufacturer
Microchip Technology

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Manufacturer Lead Time
4 Weeks

Current - Supply
-

Function
Subscriber Line Interface Concept (SLIC)

Interface
2-Wire

Mounting Type
Surface Mount

Number of Circuits
2

Operating Temperature
-40°C ~ 85°C

Package / Case
44-TQFP Exposed Pad

Supplier Device Package
44-TQFP-EP (10x10)

Voltage - Supply
4.75V ~ 5.25V

ExportControlClassNumber
EAR99

HtsusCode
8542.39.0060

MoistureSensitivityLevel
3 (168 Hours)

ReachStatus
REACH Unaffected

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip LE57D122BTCT.

The innovative Le57D122 dual-channel SLIC device is designed for high-density POTS applications requiring a small-footprint, low-power SLIC device. By combining a fully featured line interface of two channels into one SLIC device, the Le57D122 device enables the design of a low-cost, high performance, and fully programmable line interface for multiple country applications worldwide, including Ground Start and metering capability. The on-chip Thermal Management (TMG) feature allows for significantly reduced power dissipation on the device. Optional dual battery operation to reduce total power consumption is also available. The device is offered in a thermally efficient, space-saving 44-pin eTQFP package. The 12 x 12 mm footprint allows designers to make a dramatic increase in the density of lines on a board. The Le57D122 device is also designed to significantly reduce the number of external components required for line card design. Microchip offers a range of compatible SLAC devices that perform the codec function in a line card. In particular, the Microchip Quad and Octal SLAC devices combined with the Le57D122 device provides a programmable line circuit that can be configured for varying requirements.

Dual-Channel SLIC device with small footprint

Loop start and Ground start support

+5 V and battery supply required

Optional dual battery operation

-39 V to -60 V battery operation

Supplies more than 20 mA into 2000 Ohm from -48 V

Programmable current limit

On-chip Thermal Management (TMG) feature in all Active states

Low standby power (24 mW per channel)

Supports 2.0 Vrms metering applications

Control states: Active and Active Metering (Normal and Reverse Polarity), Standby, Tip Open and Disconnect

3.3-V compatible to logic control inputs

Power up in Disconnect state

On-hook transmission in Active states

Per-channel fault detection and indication

Per-channel thermal shutdown

Programmable Off Hook and Ground Start thresholds.

Programmable ring-trip detect threshold

Footprint compatible with Microchip's Le57D111 Dual SLIC
