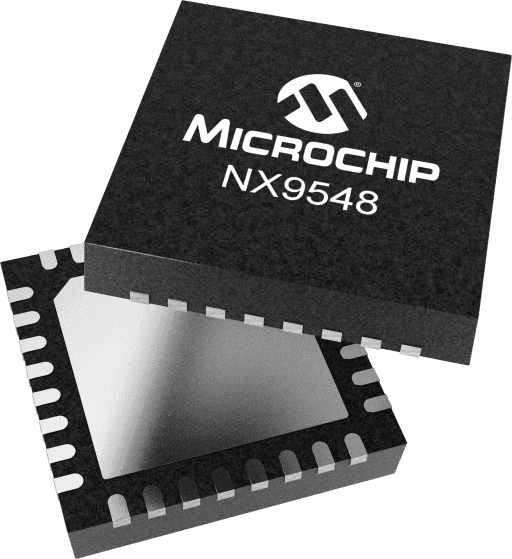

Microchip NX9548ILQ-TR
Microchip NX9548ILQ-TR

Microchip NX9548ILQ-TR

Manufacturer No:

NX9548ILQ-TR

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

The NX9548 is a synchronous buck switching regulator with 21 mΩ internal N-channel MOSFETs, primarily intended for portable (mobile) applications. The NX9548 operates from 4.5 V to 24 V, and the output voltage range is from 0.75 V to 5 V, with output currents as high as 8 A. It can be selected to operate in synchronous mode, or non-synchronous (diode emulation or PSM) mode at light loads, to improve efficiency. Adaptive constant on time (COT) control provides extremely fast transient response to line and load steps, while at the same time providing near-constant switching frequency over a wide input voltage range. The frequency is also externally adjustable. The NX9548 features overcurrent protection (OCP), feedback under-voltage lockout (FB UVLO), and overvoltage protection (OVP). It also includes an integrated bootstrap Schottky diode, and provides lowvoltage (5 V) gate-drive capability. In addition it provides a Power Good indicator and has adaptive dead time.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NX9548ILQ-TR information

Microchip NX9548ILQ-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip NX9548ILQ-TR.

  • Type
  • Parameter
  • Input Voltage Range Max V (volt)
  • 24
  • Input Voltage Range Min V (volt)
  • 4.5
  • # of Outputs
  • 1
  • Output Current
  • 8000
  • Driver Type
  • Buck
  • Quiescent Current µA (microampere)
  • 1.5
  • Synchronous Rectifier
  • Yes
  • Temp Range Max °C (degrees Celsius)
  • 85
  • Temp Range Min °C (degrees Celsius)
  • -40
  • UVLO
  • 4.1V/3.9V
  • VOUT Max V (volt)
  • 5.0
  • VFB V (volt)
  • 0.75
  • VOUT Min V (volt)
  • 0.75

Download datasheets and manufacturer documentation for Microchip NX9548ILQ-TR.

Data Sheets:

User Guide:

Application Notes:

The NX9548 is a synchronous buck switching regulator with 21 mΩ internal N-channel MOSFETs, primarily intended for portable (mobile) applications. The NX9548 operates from 4.5 V to 24 V, and the output voltage range is from 0.75 V to 5 V, with output currents as high as 8 A. It can be selected to operate in synchronous mode, or non-synchronous (diode emulation or PSM) mode at light loads, to improve efficiency. Adaptive constant on time (COT) control provides extremely fast transient response to line and load steps, while at the same time providing near-constant switching frequency over a wide input voltage range. The frequency is also externally adjustable. The NX9548 features overcurrent protection (OCP), feedback under-voltage lockout (FB UVLO), and overvoltage protection (OVP). It also includes an integrated bootstrap Schottky diode and provides lowvoltage (5 V) gate-drive capability. In addition, it provides a Power Good indicator and has adaptive dead time.



  • Adaptive COT Control
  • Adjustable, Constant Switching Frequency up to 1 MHz
  • Extremely Low-RDSON N-MOSFETs
  • Bus Voltage 4.5 V to 24 V
  • Selectable Diode Emulation Mode (PSM Mode)
  • Current Limit, UVLO, OVP
  • Gate Resistor Provision for EMI Reduction
  • -40°C to +85°C Ambient Temperature
  • -40°C to +150°C Junction Temperature
  • RoHS Compliant
