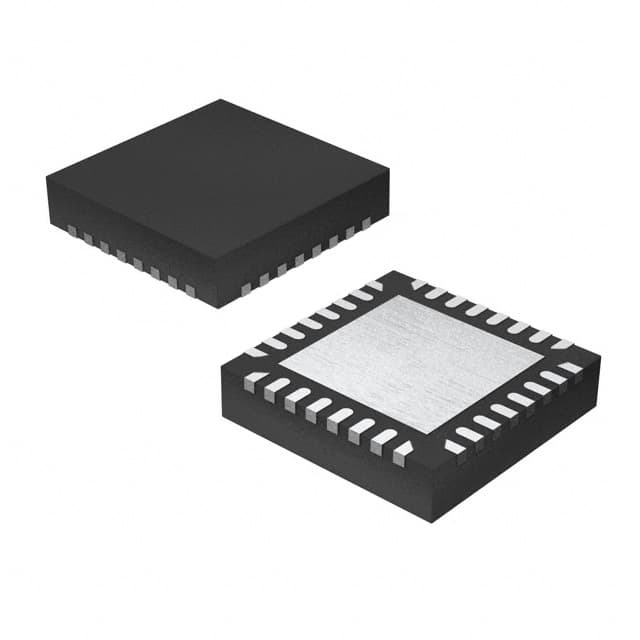

LATTICE LCMXO2-256HC-6SG32I

Manufacturer No:

LCMXO2-256HC-6SG32I

Manufacturer:

LATTICE

Package:

QFN-32

Description:

Field Programmable Gate Array, 256-Cell, CMOS, QFN-32

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCMXO2-256HC-6SG32I information

LATTICE LCMXO2-256HC-6SG32I technical specifications, attributes, parameters and parts with similar specifications to LATTICE LCMXO2-256HC-6SG32I.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Package Description
QFN-32

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Additional Feature
ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

Clock Frequency-Max
139 MHz

JESD-30 Code
S-XQCC-N32

JESD-609 Code
e3

Length
5 mm

Moisture Sensitivity Level
3

Number of CLBs
32

Number of Inputs
21

Number of Logic Cells
256

Number of Outputs
21

Number of Terminals
32

Operating Temperature-Max
100 °C

Operating Temperature-Min
-40 °C

Organization
32 CLBS

Package Body Material
UNSPECIFIED

Package Code
HVQCCN

Package Shape
SQUARE

Package Style
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Packing Method
TRAY

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
0.6 mm

Supply Voltage-Max
3.465 V

Supply Voltage-Min
2.375 V

Supply Voltage-Nom
2.5 V

Surface Mount
YES

Terminal Finish
Matte Tin (Sn)

Terminal Form
NO LEAD

Terminal Pitch
0.5 mm

Terminal Position
QUAD

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
5 mm

Download datasheets and manufacturer documentation for LATTICE LCMXO2-256HC-6SG32I.

Datasheets:

LATT-S-A0019494880-1.pdf

LCMXO2-256HC-6SG32I Overview

As part of the 32-UFQFN Exposed Pad package, it is included. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 21 I/Os allow data to be transferred in a more coherent manner. A fundamental building block consists of 256 logic elements/cells. It is powered from a supply voltage of 2.5V. The Field Programmable Gate Arrays family of FPGA parts includes this part. With a Surface Mount connector, this FPGA module can be attached to the development board. In order to operate it, it requires a voltage supply of 2.375V~3.465V . It is a type of FPGA that belongs to the MachXO2 series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of -40°C~100°C TJ when operating the machine. In this device, there are 22 outputs that can be used. In order to save space, this FPGA model has been contained in Tray. There are a total of 32 terminations. Its base part number LCMXO2-256 can be used to find parts that are related to it. Fpga electronics is important that this FPGA module has a RAM si0Be of 0B in order to ensure that the program will run normally. The FPGA consists of 32 LABs/CLBs. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. Its flexibility can be fully utilized when operating with a 3.3V supply voltage. A memory of 256B is embedded in this FPGA module for storing data and programs. This FPGA can get as fast as 388MHz. As part of the building blocks, it consists of 256 logic cells. Fpga semiconductor operates on 18μA of supply current. Fpga circuit is important to note that the main building blocks of a CPLD in this device are 128 macrocells. FLASH memory is adapted for storing data and preventing resource conflicts.

LCMXO2-256HC-6SG32I Features

21 I/Os

LCMXO2-256HC-6SG32I Applications

There are a lot of Lattice Semiconductor Corporation
LCMXO2-256HC-6SG32I FPGAs applications.

Bioinformatics
Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
