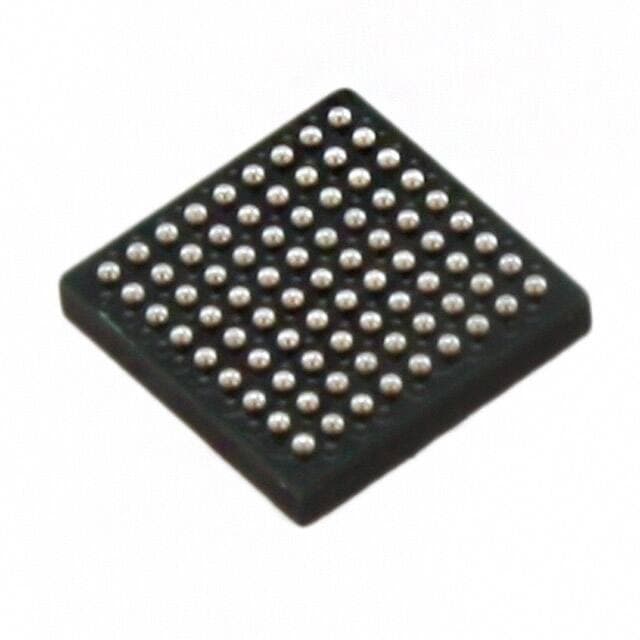

LATTICE ICE40LP1K-CM81

Manufacturer No:

ICE40LP1K-CM81

Manufacturer:

LATTICE

Package:

VFBGA, BGA81,9X9,16

Description:

Field Programmable Gate Array, 133MHz, 1280-Cell, CMOS, PBGA81, UCBGA-81

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICE40LP1K-CM81 information

LATTICE ICE40LP1K-CM81 technical specifications, attributes, parameters and parts with similar specifications to LATTICE ICE40LP1K-CM81.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Package Description
VFBGA, BGA81,9X9,16

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.31.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
133 MHz

Combinatorial Delay of a CLB-Max
9.36 ns

JESD-30 Code
S-PBGA-B81

JESD-609 Code
e1

Length
4 mm

Moisture Sensitivity Level
3

Number of CLBs
160

Number of Inputs
63

Number of Logic Cells
1280

Number of Outputs
63

Number of Terminals
81

Operating Temperature-Max
100 °C

Operating Temperature-Min
-40 °C

Organization
160 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
VFBGA

Package Shape
SQUARE

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
260

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
1 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
INDUSTRIAL

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
0.4 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
30

Width
4 mm

Download datasheets and manufacturer documentation for LATTICE ICE40LP1K-CM81.

Datasheets:

LATT-S-A0019793950-1.pdf

ICE40LP1K-CM81 Overview

A 81-VFBGA package contains it, and it is available for download. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. Its 63 I/Os help it transfer data more efficiently. Power is provided by a 1.2V-volt supply. An FPGA part from the Field Programmable Gate Arrays family. The Surface Mount-slot connector on the FPGA module can be connected to the development board. Fpga chips operates at a voltage of 1.14V~1.26V and uses a battery to supply power. FPGAs belonging to the iCE40™ LP series are a type of FPGA that belong to the iCE40™ LP series of FPGAs. Operating temperatures should be maintained within the -40°C~100°C TJ range at all times when the unit is in use. During the installation of this device, 63 outputs were incorporated. A model of this FPGA is contained in Tray for the purpose of saving space. In total, there are a total of 81 terminations on fpga chips. Having a RAM bit size of 65536 means that this device will offer you a lot of memory. For related parts, use its base part number ICE40. A significant amount of RAM is allocated to this FPGA module to ensure that the program can operate normally. This cable has 81 pins and is designed to connect to a computer. 160 LABs/CLBs are integrated into this FPGA. With a 1.2V supply voltage, designers can fully utilize the flexibility of the device. In this FPGA module, there is a memory of 8kB available for storing applications and data. The registers used in the transfer of and storage of data are 1280 in number. In order to make the architecture work, 160 CLBs are used. A frequency of 256MHz provides high efficiency.

ICE40LP1K-CM81 Features

63 I/Os
Up to 65536 RAM bits
81 LABs/CLBs
1280 registers
Operating from a frequency of 256MHz

ICE40LP1K-CM81 Applications

There are a lot of Lattice Semiconductor Corporation
ICE40LP1K-CM81 FPGAs applications.

Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
Consumer Electronics
Distributed Monetary Systems
