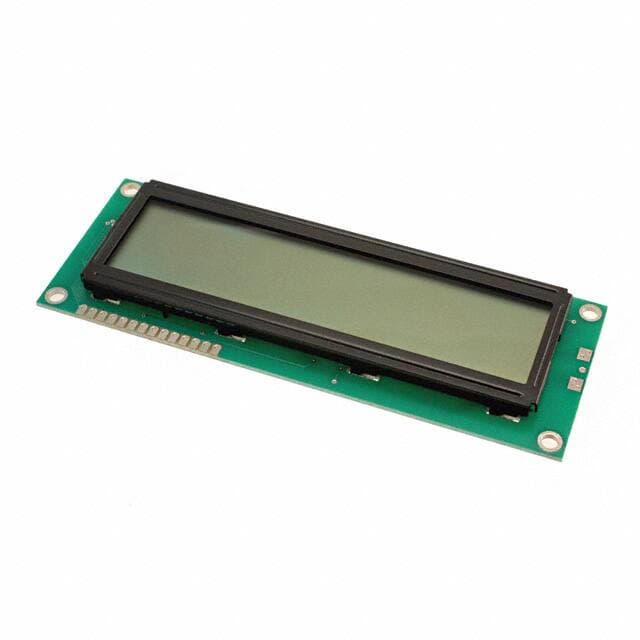

Lumex Opto/Components Inc. LCM-S01602DSR/D

Manufacturer No:

LCM-S01602DSR/D

Manufacturer:

Lumex Opto/Components Inc.

Package:

Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCM-S01602DSR/D information

Lumex Opto/Components Inc. LCM-S01602DSR/D technical specifications, attributes, parameters and parts with similar specifications to Lumex Opto/Components Inc. LCM-S01602DSR/D.

Type
Parameter

Factory Lead Time
16 Weeks

Package / Case
Module

Operating Temperature
0°C~50°C

Packaging
Bulk

Published
2000

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Rated
5V

HTS Code
8541.40.20.00

Number of Functions
1

Current Rating
3mA

Operating Supply Voltage
5V

Supply Voltage-Max (Vsup)
4.8V

Interface
Parallel

Display Type
STN - Super-Twisted Nematic

Number of Characters
32

Number of Characters Per Row
16

Viewing Area
99.00mm L x 24.00mm W

Display Mode
Reflective

Backlight
Without Backlight

Background Color
Green

Dot Size
1.16mm Wx1.16mm H

Display Format
16 x 2

Outline L x W x H
122.00mm x 44.00mm x 8.80mm

Character Format
5 x 8 Dots

Character Width
4.84mm

Fluid Type
STN

Viewing Area (width)
99mm

Height
44mm

Length
122mm

Width
122mm

Viewing Area (height)
24mm

Character Height
9.63mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Lumex Opto/Components Inc. LCM-S01602DSR/D.

The Lumex LCM-S01602DSR/D Alphanumeric LCD is a 16 x 2 character display module that is designed for use in a variety of applications. This display module Features a black on yellow/green backlight and is powered by a 5V parallel connection. It is available in both English and Japanese language versions.

Features

? 16 x 2 character display
? Black on yellow/green backlight
? 5V parallel connection
? Available in English and Japanese language versions
? InfoVue technology for improved readability
? Low power consumption
? RoHS compliant

Application

The Lumex LCM-S01602DSR/D Alphanumeric LCD is suitable for a variety of applications, including industrial control systems, medical equipment, consumer electronics, and automotive applications. It is also suitable for use in embedded systems, such as microcontrollers, and can be used to display text, numbers, and symbols.
