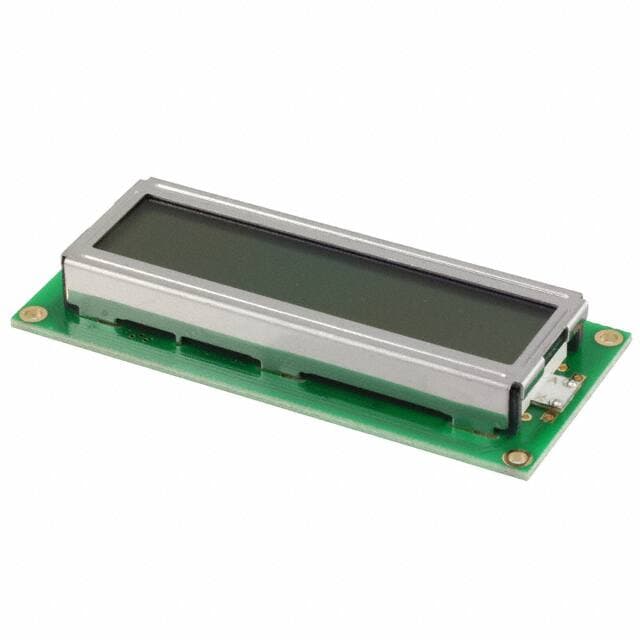

Lumex Opto/Components Inc. LCM-S01602DSF/A

Manufacturer No:

LCM-S01602DSF/A

Manufacturer:

Lumex Opto/Components Inc.

Package:

Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCM-S01602DSF/A information

Lumex Opto/Components Inc. LCM-S01602DSF/A technical specifications, attributes, parameters and parts with similar specifications to Lumex Opto/Components Inc. LCM-S01602DSF/A.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Screw

Package / Case
Module

Weight
1.133981g

Operating Temperature
0°C~50°C

Packaging
Bulk

Published
2002

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Rated
4.6V

HTS Code
8541.40.20.00

Current Rating
160mA

Operating Supply Voltage
5V

Interface
Parallel

Display Type
STN - Super-Twisted Nematic

Number of Characters
32

Number of Characters Per Row
16

Viewing Area
66.00mm L x 16.00mm W

Display Mode
Transflective

Backlight
LED - Yellow/Green

Background Color
Green

Dot Size
0.56mm Wx0.66mm H

Display Format
16 x 2

Character Size
5.56mm Hx2.96mm W

Backlight Type
LED

Character Format
5 x 8 Dots

Character Width
2.96mm

Viewing Area (width)
66mm

Height
36mm

Length
635?m

Width
80mm

Viewing Area (height)
16mm

Character Height
5.56mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Lumex Opto/Components Inc. LCM-S01602DSF/A.

The Lumex LCM-S01602DSF/A is a 16x2 dot matrix LCD display module that is perfect for a wide range of applications. It features a wide viewing angle, high contrast, and low power consumption. The module is designed for easy integration into any system, and is compatible with a variety of microcontrollers. It has a wide operating temperature range, making it suitable for both indoor and outdoor use. The module is also RoHS compliant, making it an environmentally friendly choice. The Lumex LCM-S01602DSF/A is a reliable and cost-effective solution for any project.
