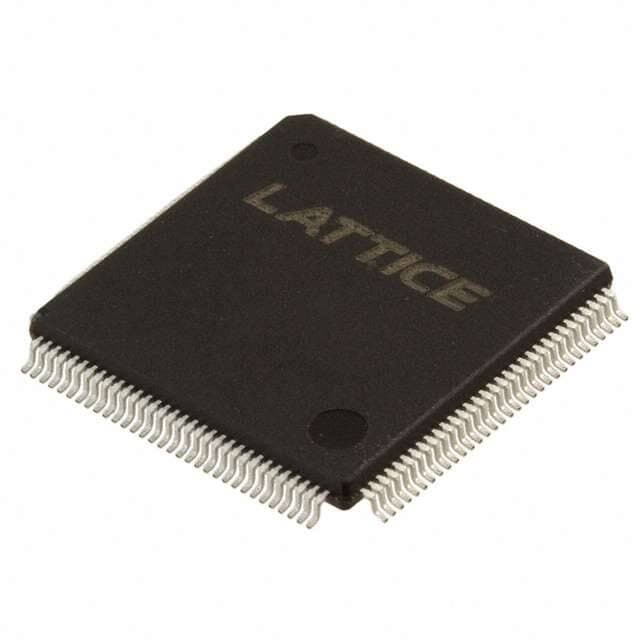

LATTICE LC4128C-5TN128C

Manufacturer No:

LC4128C-5TN128C

Manufacturer:

LATTICE

Package:

128-LQFP

Description:

0.4mm PMIC ispMACH® 4000C Series LC4128 227.27MHz 1.8V 128-LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LC4128C-5TN128C information

LATTICE LC4128C-5TN128C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LC4128C-5TN128C.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
128-LQFP

Operating Temperature
0°C~90°C TJ

Packaging
Tray

Series
ispMACH® 4000C

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
YES

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.8V

Terminal Pitch
0.4mm

Frequency
227.27MHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
128

Operating Supply Voltage
1.8V

Programmable Type
In System Programmable

Max Supply Voltage
1.95V

Min Supply Voltage
1.65V

Operating Supply Current
2mA

Number of I/O
92

Nominal Supply Current
2mA

Memory Type
EEPROM

Propagation Delay
5 ns

Turn On Delay Time
5 ns

Number of Logic Blocks (LABs)
36

Output Function
MACROCELL

Number of Macro Cells
128

JTAG BST
YES

Number of Dedicated Inputs
4

Voltage Supply - Internal
1.65V~1.95V

Number of Logic Elements/Blocks
8

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LATTICE LC4128C-5TN128C.

LC4128C-5TN128C Overview

There are 128 macro cells, which provide radio coverage via high-power cell towers, antennas or masts in a mobile phone network.The product is contained in a 128-LQFP package.It is equipped with 92 I/O ports.The termination of a device is set to 128.This electrical part has a terminal position of QUAD and is connected to the ground.The power source is powered by 1.8V volts.It belongs to the family Programmable Logic Devices.Ideally, the chip should be packaged by Tray.A reliable operation is ensured by the operating temperature of [0].Ensure that the chip is mounted by Surface Mount.In this case, it is a type of FPGA belonging to the ispMACH® 4000C series.There are 128 pins on the chip.It is also possible to find YES when using this device.LC4128 contains its related parts.High efficiency requires the supply voltage to be maintained at 1.8V.In general, it is recommended to store data in EEPROM.It is mounted by Surface Mount.A maximum supply voltage of 1.95V is used in its operation.It is powered by 1.65V as its minimum supply voltage.A logic element or block has 8 elements.You can achieve 227.27MHz frequencies.The system consists of 36 logic blocks (LABs).The status of input signals is detected by 4 dedicated inputs.

LC4128C-5TN128C Features

128-LQFP package
92 I/Os
The operating temperature of 0°C~90°C TJ
128 pin count
36 logic blocks (LABs)

LC4128C-5TN128C Applications

There are a lot of Lattice Semiconductor Corporation
LC4128C-5TN128C CPLDs applications.

Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Battery operated portable devices
Complex programmable logic devices
Digital designs
Field programmable gate
Address decoding
D/T registers and latches
