ONSEMI LB11870-TRM-E

Manufacturer No:

LB11870-TRM-E

Manufacturer:

ONSEMI

Package:

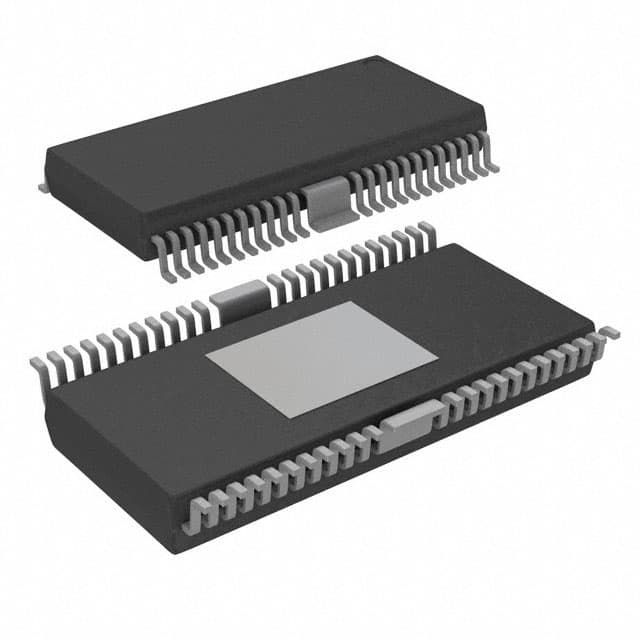

48-SSOP (0.311, 7.90mm) Exposed Pad + 2 Heat Tabs

Description:

7.9mm mm Motor Drivers 48 24V V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LB11870-TRM-E information

ONSEMI LB11870-TRM-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LB11870-TRM-E.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-SSOP (0.311, 7.90mm) Exposed Pad + 2 Heat Tabs

Number of Pins
48

Operating Temperature
-20°C~80°C TA

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
Polygonal Mirror

Subcategory
Motion Control Electronics

Technology
Bipolar

Voltage - Supply
9.5V~28V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
24V

Terminal Pitch
0.65mm

Base Part Number
LB11870

Function
Driver - Fully Integrated, Control and Power Stage

Number of Outputs
1

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
28V

Power Supplies
24V

Supply Voltage-Min (Vsup)
9.5V

Interface
PWM

Analog IC - Other Type
BRUSHLESS DC MOTOR CONTROLLER

Nominal Supply Current
21mA

Output Configuration
Half Bridge (3)

Power Dissipation
850mW

Current - Output
2.3A

Logic Function
AND

Voltage - Load
9.5V~28V

Motor Type - AC, DC
Brushless DC (BLDC)

Height Seated (Max)
2.4mm

Width
7.9mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI LB11870-TRM-E.

Datasheets:

onsemiconductor-lb11870trme-datasheets-2543.pdf

LB11870-TRM-E Overview

The package contains [0].There is 48-SSOP (0.311, 7.90mm) Exposed Pad + 2 Heat Tabs case included with the part.A mounting position of Surface Mountis recommended for the part.Fits the component connected to Polygonal Mirror.There is a possibility of providing 9.5V~28Vvolts through the device.In terms of operating temperature, it falls within the range -20°C~80°C TA.A motor of this type can be categorized as Brushless DC (BLDC).In this part, there are 48 terminations available.In this case, the voltage can be applied to the load at the rate of 9.5V~28V.Drivers controllers is recommended that this amplifier be run at 24V.There is Surface Mount recommended mounting method for this device.Maintain a 2.3Aoutput current for the part.A BRUSHLESS DC MOTOR CONTROLLERanalog IC is employed in this device.Using the LB11870part number, it is located.There are 48 pins on it.Drivers controllers is a part of the Motion Control Electronics series.1outputs are available.

LB11870-TRM-E Features

Applications : Polygonal Mirror
Load voltage across the chip 9.5V~28V
base on LB11870 number
designed with 1 outputs

LB11870-TRM-E Applications

There are a lot of ON Semiconductor
LB11870-TRM-E motor drivers applications.

Hospitality buildings
Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
