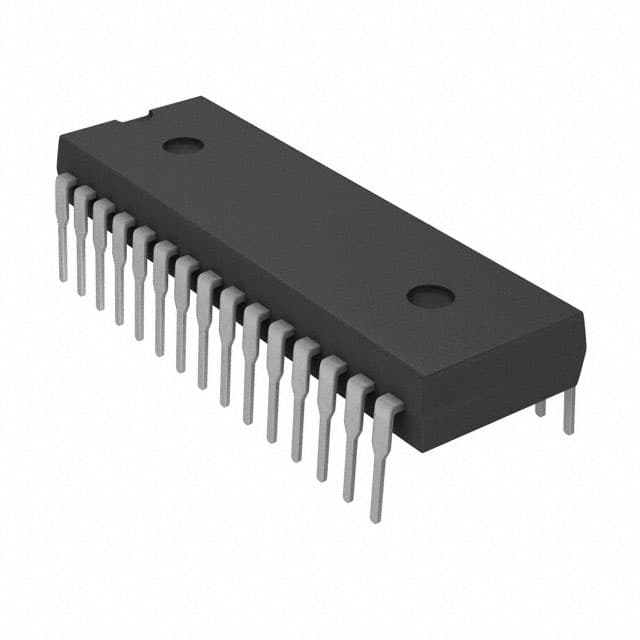

ONSEMI LB11822-E

Manufacturer No:

LB11822-E

Manufacturer:

ONSEMI

Package:

30-SDIP (0.400, 10.16mm)

Description:

Motor Drivers 28 24V V 5.35V V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LB11822-E information

ONSEMI LB11822-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LB11822-E.

Type
Parameter

Lifecycle Status
LAST SHIPMENTS (Last Updated: 1 month ago)

Factory Lead Time
2 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
30-SDIP (0.400, 10.16mm)

Number of Pins
30

Operating Temperature
-20°C~80°C TA

Packaging
Tube

Published
2013

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
General Purpose

Subcategory
Motion Control Electronics

Technology
BIPOLAR

Voltage - Supply
9.5V~28V

Terminal Position
DUAL

Supply Voltage
24V

Terminal Pitch
1.78mm

JESD-30 Code
R-PDIP-T28

Function
Driver - Fully Integrated, Control and Power Stage

Output Voltage
5.35V

Operating Supply Voltage
28V

Power Supplies
24V

Interface
PWM

Nominal Supply Current
30mA

Output Configuration
Half Bridge (3)

Power Dissipation
3W

Current - Output
3.1A

Logic Function
AND

Voltage - Load
9.5V~28V

Motor Type - AC, DC
Brushless DC (BLDC)

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI LB11822-E.

PCN Obsolescence/ EOL:

onsemiconductor-la1787mmpbe-pcnobsolescenceeol-4391.pdf

LB11822-E Overview

There is a Tubepackage included in the design.Parts are packaged in 30-SDIP (0.400, 10.16mm)cases.To mount the part by [0], it is recommended that you do so.In this case, it is appropriate for the component connected to General Purpose.In this case, the device can supply 9.5V~28V volts.Regarding the operating temperature, it is in the range of -20°C~80°C TA°C.A Brushless DC (BLDC)motor can be classified as a type of motor.A total of 28terminations are available in the part.Drivers controllers is possible to apply voltage at a rate of 9.5V~28Vto the load.You should run this amplifier at 24V.Through Holeis its recommended mounting method.Maintain the current output of the part at 3.1A volts.30pins are used in its design.Drivers controllers belongs to the series [0].The driver operates on a supply voltage of 28V volts.In this case, 5.35Vis maintained as the output voltage.
