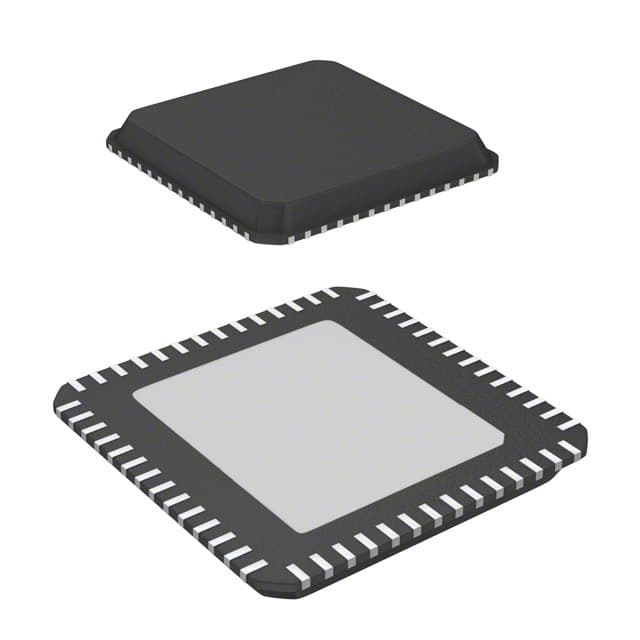

Microchip LAN9303I-ABZJ-TR
Microchip LAN9303I-ABZJ-TR

Microchip LAN9303I-ABZJ-TR

Manufacturer No:

LAN9303I-ABZJ-TR

Manufacturer:

Microchip

Package:

56-VFQFN Exposed Pad

Description:

Microchip\u0027s LAN9303/LAN9303i is a high-performance, small-footprint, full-featured 3-port 10/100 managed Ethernet switch with support for MII/RMII/Turbo MII.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LAN9303I-ABZJ-TR information

Microchip LAN9303I-ABZJ-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN9303I-ABZJ-TR.

  • Type
  • Parameter
  • Copper Support
  • 10/100 (2)
  • DownstreamPorts
  • 3
  • Port Speed
  • 10/100Mbps
  • Fiber Support
  • No
  • IEEE 1588
  • No
  • InterfaceUpStream
  • MII/RMII/Turbo MII
  • LinkMDCableDiag
  • No
  • OpVoltage
  • 3.3
  • Supply Voltages
  • 3.3
  • Temperature Range Max
  • 85
  • Temperature Range Min
  • -40
  • Digital I/O Voltage
  • 3.3
  • WakeonLAN
  • No

Download datasheets and manufacturer documentation for Microchip LAN9303I-ABZJ-TR.

Brochures:

Data Sheets:

Supporting Collateral:

Application Notes:

Microchip's LAN9303/LAN9303i is a high-performance, small-footprint, full-featured 3-port managed Ethernet switch. This device is application-optimized for consumer, and embedded electronics designs which have a rapid development cycle and require low-cost switching functionality, flexibility and ease of integration.

Featuring the industry's smallest form factor 3-port switch, the LAN9303/9303i supports compact PCB design and MII/RMII/Turbo MII (Media Independent, Reduced Media Independent and Turbo Media Independent Interfaces). This device supports Turbo MII mode to accomplish network speeds up to 200 Mbps. The virtual PHY feature mimics a single PHY connection through the MII/RMII/Turbo MII interface to the host SoC, which can reduce software development time. This feature also allows system designers to swap the single PHY and Ethernet switch to create multiple SKUs from the same software driver. Additionally, the LAN9303/9303M offer the industry's highest (±8kV/15kV) per-port ESD protection.

The LAN9303/9303i switch combines all of the functions of a 10/100 system, including the switch fabric, packet buffers, buffer management, MACs, PHY transceivers and optional serial management functions. Both devices comply with IEEE 802.3 10BASE-T and 100BASE-TX Ethernet protocol specifications, enabling compatibility with industry standard Ethernet and Fast Ethernet applications.


Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • High-performance, full-featured 3-port switches with per-port IEEE 802.1Q VLAN support (up to 16 VLAN groups)
  • Industry's highest (±8kV/15kV) per-port ESD protection
  • IGMP v1/v2 monitoring for multicast packet filtering
  • Up to 200 Mbps network speed via a Turbo MII interface
  • Optional EEPROM or external CPU serial management support via an I²C™ interface
  • Virtual PHY feature simplifies software development by mimicking multiple switch ports as a single-port PHY
  • Integrated regulators require a single 3.3V supply
  • 42 per-port MIB counters for efficient network management
  • Industrial temperature (-40°C to 85°C) options available (LAN9303i/9303Mi)
  • 8x8mm, 56-pin QFN package for single MII/RMII/Turbo MII
      • Applications:
    • Cable, Satellite, and IP Set-top Boxes (STBs)
    • Digital Televisions (DTVs)
    • Digital/Personal Video Recorders (DVRs/PVRs)
    • VoIP/Video Phone Systems
    • Home Gateways/Consumer Audio/Video
    • Test/Measurement Equipment
    • Industrial Automation and Control
