Renesas RJK0349DSP-00#J0
Renesas RJK0349DSP-00#J0

Renesas RJK0349DSP-00#J0

Manufacturer No:

RJK0349DSP-00#J0

Manufacturer:

Renesas

Package:

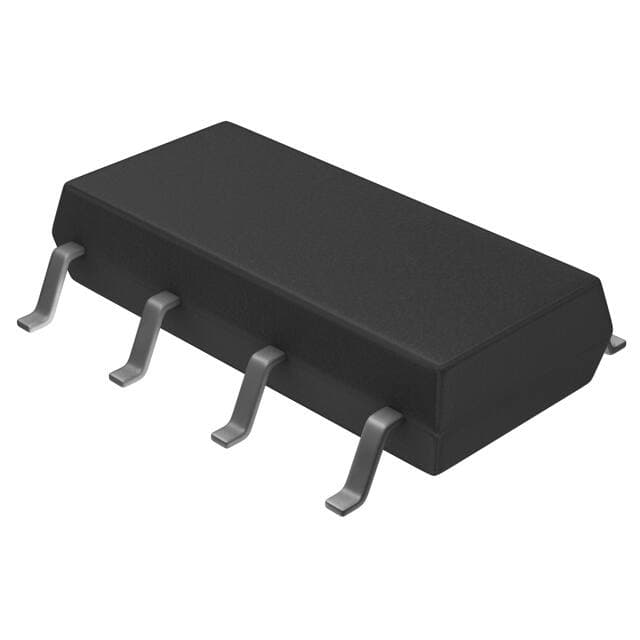

8-SOIC (0.154, 3.90mm Width)

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 3.8m ? @ 10A, 10V ±20V 3850pF @ 10V 25nC @ 4.5V 30V 8-SOIC (0.154, 3.90mm Width)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RJK0349DSP-00#J0 information

Renesas RJK0349DSP-00#J0 technical specifications, attributes, parameters and parts with similar specifications to Renesas RJK0349DSP-00#J0.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-SOIC (0.154, 3.90mm Width)
  • Number of Pins
  • 8
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2008
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Technology
  • MOSFET (Metal Oxide)
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 8
  • Power Dissipation-Max
  • 2.5W Ta
  • Turn On Delay Time
  • 11 ns
  • FET Type
  • N-Channel
  • Rds On (Max) @ Id, Vgs
  • 3.8m ? @ 10A, 10V
  • Input Capacitance (Ciss) (Max) @ Vds
  • 3850pF @ 10V
  • Current - Continuous Drain (Id) @ 25°C
  • 20A Ta
  • Gate Charge (Qg) (Max) @ Vgs
  • 25nC @ 4.5V
  • Rise Time
  • 4.7ns
  • Drain to Source Voltage (Vdss)
  • 30V
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 9.8 ns
  • Turn-Off Delay Time
  • 58.5 ns
  • Continuous Drain Current (ID)
  • 20A
  • Gate to Source Voltage (Vgs)
  • 20V
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas RJK0349DSP-00#J0.

Datasheets:

ConflictMineralStatement:

RJK0349DSP-00#J0 Overview


A device's maximum input capacitance is 3850pF @ 10V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.Its continuous drain current is 20A for this device. Drain current refers to the capacity of the device to conduct continuous current.A device's turn-off delay time is the amount of time it takes to charge its input capacitance before drain current conduction can begin, which is 58.5 ns.Before drain current conduction begins, the device's input capacitance must be charged, so the delay time is 11 ns.Generally, the gate-source voltage (VGS) of a FET transistor is the voltage across its gate-source terminal, which is 20V.To operate this transistor, you need to apply a 30V drain to source voltage (Vdss).This device uses no drive voltage (4.5V 10V) to reduce its overall power consumption.

RJK0349DSP-00#J0 Features


a continuous drain current (ID) of 20A
the turn-off delay time is 58.5 ns
a 30V drain to source voltage (Vdss)


RJK0349DSP-00#J0 Applications


There are a lot of Renesas Electronics America
RJK0349DSP-00#J0 applications of single MOSFETs transistors.


  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
  • Industrial Power Supplies
  • PFC stages, hard switching PWM stages and resonant switching
  • PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
  • Lighting, Server, Telecom and UPS.
  • DC-to-DC converters
