ST L99DZ70XP

Manufacturer No:

L99DZ70XP

Manufacturer:

Package:

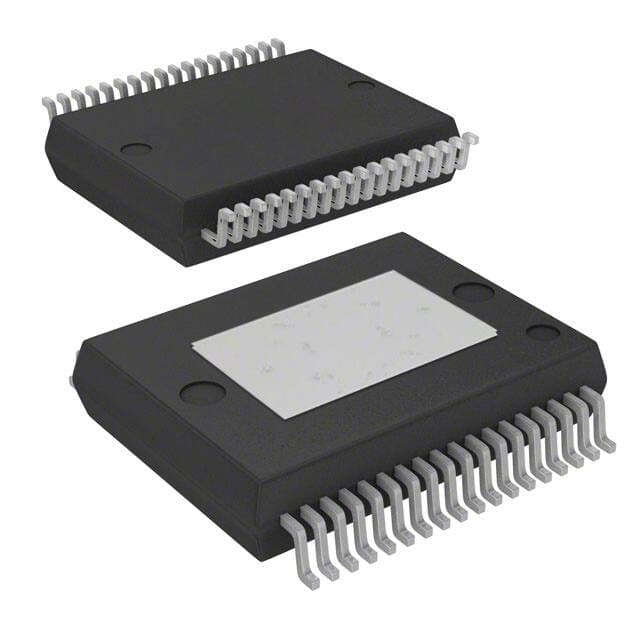

36-PowerFSOP (0.295, 7.50mm Width)

Description:

36 Terminations 7V~28V 36 Pin L99D Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

L99DZ70XP information

ST L99DZ70XP technical specifications, attributes, parameters and parts with similar specifications to ST L99DZ70XP.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 8 months ago)

Factory Lead Time
30 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
36-PowerFSOP (0.295, 7.50mm Width)

Number of Pins
36

Operating Temperature
-40°C~150°C

Packaging
Tube

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Applications
Door Actuator

HTS Code
8542.39.00.01

Voltage - Supply
7V~28V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Base Part Number
L99D

Operating Supply Current
7mA

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Supply Voltage1-Nom
16V

Built-in Protections
OVER CURRENT; THERMAL

Output Current Flow Direction
SOURCE SINK

Length
10.3mm

Height Seated (Max)
2.5mm

Width
7.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST L99DZ70XP.

Datasheets:

stmicroelectronics-l99dz70xptr-datasheets-3843.pdf

L99DZ70XP Overview

It is acceptable to ship using the method Tube .It is packaged the power management in 36-PowerFSOP (0.295, 7.50mm Width) for ease of transportation.For easy adaptation, Surface Mount is a universal mounting method.It is intended to be used at Door Actuator as well as for other applications.Ideally, the operating temperature of the power management ic should be set to -40°C~150°C to avoid any malfunctions.For its operation, the power management uses 7V~28V voltage.You can search L99D if you are looking for more power ic's pin-to-pin solutions.The power managment ic has 36 terminals.The power managment ic is programmed with 36 pins.It is equipped with a Surface Mount that facilitates mounting on a PCB or other board.It is capable of handling a variety of demanding tasks when powered by 5V voltage.To use the ics supply, there are 36 pins available.The power management ic is powered by a voltage of 7mA volts.
