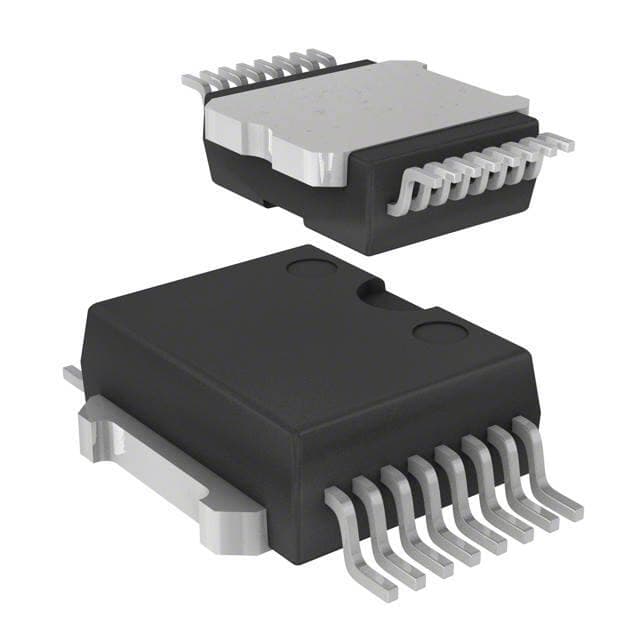

ST L9958SBTR

Manufacturer No:

L9958SBTR

Manufacturer:

Package:

16-PowerBSOP (0.370, 9.40mm Width)

Description:

20?A mA Motor Drivers 16 300mV V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

L9958SBTR information

ST L9958SBTR technical specifications, attributes, parameters and parts with similar specifications to ST L9958SBTR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
19 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-PowerBSOP (0.370, 9.40mm Width)

Number of Pins
16

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Applications
General Purpose

Subcategory
Motion Control Electronics

Technology
CMOS

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Terminal Pitch
0.8mm

Base Part Number
L9958

JESD-30 Code
R-PDSO-G18

Function
Driver - Fully Integrated, Control and Power Stage

Output Voltage
300mV

Interface
SPI

Operating Supply Current
20?A

Output Configuration
Half Bridge (2)

Current - Output
8.6A

Supply Current-Max (Isup)
5mA

Voltage - Load
4V~28V

Motor Type - AC, DC
Brushed DC

Motor Type - Stepper
Bipolar

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST L9958SBTR.

Datasheets:

stmicroelectronics-l9958-datasheets-9086.pdf

L9958SBTR Overview

Drivers controllers is designed wDrivers controllersh a package of [0].A 16-PowerBSOP (0.370, 9.40mm Width)case is included with the part.Ideally, the part should be mounted by Surface Mount.This component is suitable for the component connected to General Purpose.Drivers controllers is capable of supplying 4.5V~5.5V volts.This device operates at a temperature range of -40°C~150°C TJ.Drivers controllers is possible to categorize the motor type as Brushed DC.This part offers 16terminations.Drivers controllers is possible to apply voltage to the load at the rate of 4V~28V.A Surface Mountmounting method is recommended for this product.Set the part's output current to 8.6A.As a result of the L9958part number, it can be found.This device is designed with a pin count of 16.Drivers controllers is part of the series [0].The number of outputs available is [0].In this case, the output voltage is maintained at 300mV.For its operation, a supply current of 20?Ais used.
