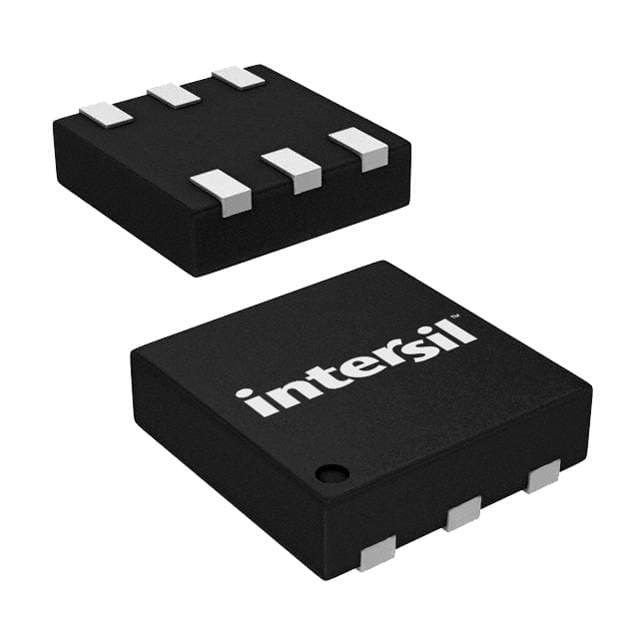

Renesas ISL9103IRUCZ-T
Manufacturer No:
ISL9103IRUCZ-T
Manufacturer:
Package:
Description:
6 Terminals 6-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 2.4MHz Tape & Reel 500mA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL9103IRUCZ-T information
Renesas ISL9103IRUCZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9103IRUCZ-T.
- Type
- Parameter
- Mount
- Surface Mount
- Number of Pins
- 6
- Packaging
- Tape & Reel
- Published
- 2008
- JESD-609 Code
- e4
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Terminal Finish
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Additional Feature
- PFM TECHNIQUE ALSO POSSIBLE; ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.8V
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Pin Count
- 6
- Number of Outputs
- 1
- Efficiency
- 95 %
- Output Voltage
- 1.8V
- Output Type
- Fixed
- Max Output Current
- 500mA
- Input Voltage-Nom
- 3.6V
- Temperature Grade
- INDUSTRIAL
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Current - Output
- 500mA
- Voltage - Output
- 1.8V
- Min Input Voltage
- 2.7V
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 2.4MHz
- Max Input Voltage
- 6V
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 1.8V
- Switcher Configuration
- BUCK
- Height Seated (Max)
- 0.55mm
- Width
- 1.6mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
